10GBASE-ZR SFP+ 1550nm 80km Transceiver


  • Data rate: 10G
  • Distance: 80km
  • Wavelength (nm): 1550
  • Source: EML+APD
  • DDM:  YES
  • Media Type: SMF

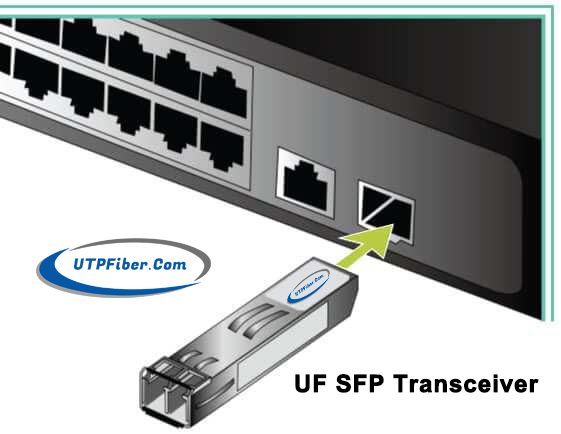

  UF’s SFP+ ZR transceivers is 1550nm cooled EML laser and APD photo-detector receiver based 10Gigabit SFP+ transceiver, which is designed to transmit and receive optical data over single mode optical fiber for link length up to 80km.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

10GBASE-ZR SFP+ 1550nm 100km Transceiver, 10G-ZR 80km

  • 1550nm cooled EML, APD Receiver
  • Up to 80km on 9/125um SMF
  • SFP+ MSA package with duplex LC connector
  • SFI High Speed Electrical Interface
  • Very low EMI and excellent ESD protection
  • +3.3V single power supply
  • Case temperature range: -5℃ to 70℃.
  • 2-wire interface for management and diagnostic monitor
  • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ZR/ZW
  • Power dissipation < 1.5W

Part Number SFP-10G-ZR100 Vendor Name UTP Fiber
Form Factor SFP+ Max Data Rate 11.3Gbps
Wavelength 1550nm Max Cable Distance 80km
Connector LC duplex Optical Components EML 1550nm
Media SMF DOM Support Yes
TX Power 0~5dBm Receiver Sensitivity < - 25dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) Protocols SFP+ MSA Compliant, CPRI, eCPRI
  • Download FileName:UF-SFP-10G-80 10G SFP+ SMF 80KM Datasheet V1.0.pdf Size: 551KB

Part Number

Product Description


10Gbps, 1550nm SFP+ 80km, -5ºC ~ +70ºC
