10GBASE-ER SFP+ 1550nm 40km Transceiver


  • Data rate: 10G
  • Distance: 40km
  • Wavelength (nm): 1550
  • Source: EML+PIN
  • DDM:  YES
  • Media Type: SMF

  UF-SFP-10G-40 1550nm Transceiver is a “Limiting module”, designed for 10GBASE-ER, and 2G/4G/ 8G/10G Fiber- Channel applications.

  The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

10GBASE-ER SFP+ 1550nm 40km Transceiver, 10G-ER 40km

  • Compliant with SFF-8431,SFF-8432 and IEE802.3ae
  • 10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
  • Cooled EML transmitter and PIN receiver
  • link length up to 40km
  • Low Power Dissipation 1.5W Maximum
  • -5ºC to 70ºC Operating Case Temperature
  • Single 3.3V power supply
  • Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
  • RoHS6 compliant and lead free

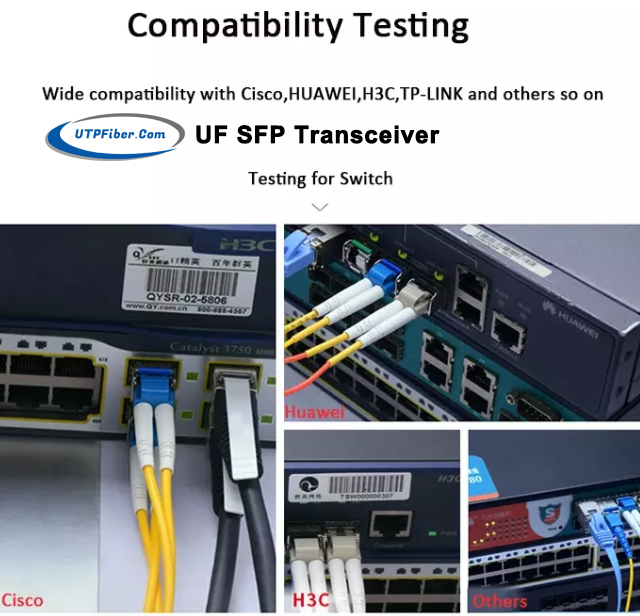

Cisco Compatible SFP-10G-ER Vendor Name UTP Fiber
Form Factor SFP+ Max Data Rate 11.3Gbps
Wavelength 1550nm Max Cable Distance
Connector LC duplex Optical Components EML 1550nm
Media SMF DOM Support Yes
TX Power -1~4dBm Receiver Sensitivity < -16dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) Protocols SFP+ MSA Compliant, CPRI, eCPRI
  • Download FileName:UF-SFP-10G-40 10G SFP+ SMF 40KM Datasheet V1.0.pdf Size: 404KB

Part Number

Product Description


10Gbps, 1550nm SFP+ 40km, -5ºC ~ +70ºC
