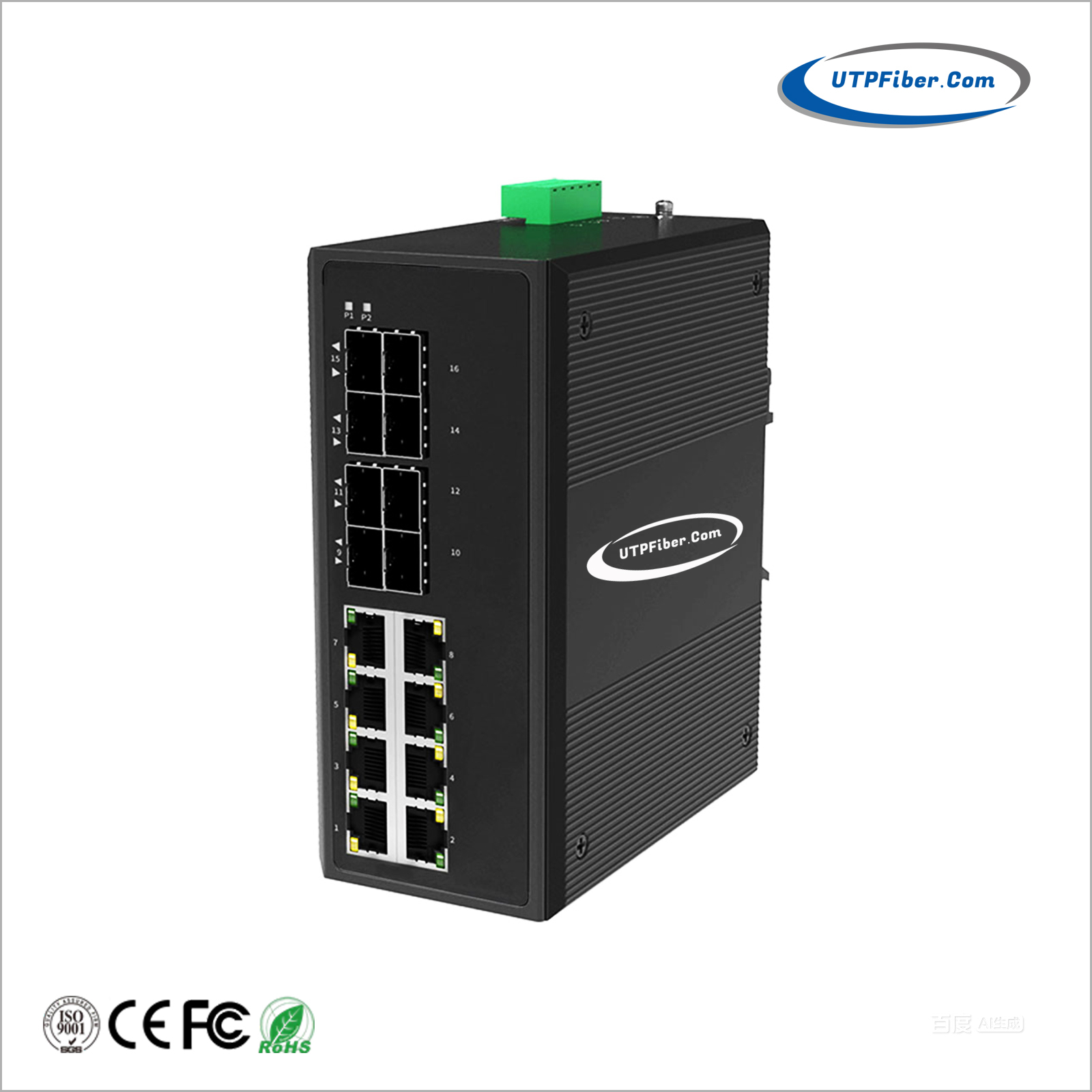

Unmanaged Industrial 8-Port 10/100/1000BASE-T + 8-Port 100/1000BASE-X SFP Fiber Switch
Model:UF-IFS808G
► Support 8-Port 100/1000BASE-X SFP + 8-Port 10/100/1000BASE-T
► IP40 Aluminum case, Fanless design
► 9-56VDC redundant power with reverse polarity protection
► -40 to +80℃ operating temperature
► Installation method: DIN-Rail or Wall Mount
The UF-IFS808G, a cutting-edge Industrial Ethernet switch, stands out as the ultimate choice for industrial networking applications, thanks to its exceptional performance capabilities. Equipped with 8 ports 10/100/1000Base-T and 8 ports 100/1000Base-X SFP uplink ports, this switch not only guarantees stable and reliable Ethernet transmission but also boasts an exquisitely engineered design and unwavering reliability.
Positioned precisely within the broadband network access market, the UF-IFS808G is dedicated to crafting efficient and stable network solutions for users. By enabling seamless Ethernet data exchange, aggregation, and long-distance optical transmission, it provides high-efficiency bandwidth and a reliable fiber optic network, effectively catering to diverse networking requirements. Moreover, it offers a plethora of inherent advantages. Its compact form factor maximizes space utilization, while the fanless design minimizes noise and potential failure points. The low-power consumption feature promotes energy efficiency, and its high reliability and stability ensure uninterrupted network operation. Additionally, the switch's user-friendly design simplifies maintenance, significantly reducing operational costs.
In terms of security and environmental adaptability, the UF-IFS808G's dual power input design provides redundant protection for critical applications, ensuring continuous connectivity without interruption. With an extended operating temperature range from -40°C to 80°C, it can thrive in extreme conditions. Housed in robust DIN rail-mountable or wall-mountable IP40 enclosures, the switch is the ideal solution for harsh environments, including industrial networking, Intelligent Transportation Systems (ITS), and various military and utility applications where environmental conditions far exceed the standards of commercial products.
► Support 8-Port 100/1000BASE-X SFP + 8-Port 10/100/1000BASE-T
► Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
► Supports MAC address auto-learning and auto aging
► Support 9K bytes giant frame, compatible with various extension protocol
► Support IEEE802.3az energy efficient Ethernet technology
► IEEE 802.1Q VLAN Transparency
► Complete status indicator, working state at a glance
► Support IPv6 Protocol, Electric 6KV surge protection
► IP40 Aluminum case, Fanless design
► 9-56VDC redundant power with reverse polarity protection
► -40 to +80℃ operating temperature
► Installation method: DIN-Rail or Wall Mount
|
Hardware Specifications |
|
|
Product |
UF-IFS808G |
|
Copper Port |
8 x 10/100/1000BASE-T RJ45 |
|
Fiber Ports |
8 x 100/1000BASE-X SFP |
|
Enclosure |
IP40 aluminum case |
|
Installation |
DIN-Rail and Wall-mount |
|
Dimension |
160 x 132 x 70mm |
|
Weight |
990g(Bare weight), 1250g(With package) |
|
Surge Protection |
±6kV DC, ±4kV RJ45 |
|
Switching |
|
|
Switch Architecture |
Store-and-Forward |
|
Switch Fabric |
52Gbps/non-blocking |
|
Forwarding Rate |
23.8 Mpps (64-byte packet size) |
|
Packet Buffer Size |
4Mbits |
|
MAX. Packet Length |
9K bytes |
|
MAC Address Table |
8K entries, automatic source address learning and aging |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Power Supply |
|
|
Power Input |
2 |
|
Power Connector |
1 removable 5-contact terminal blocks |
|
Pin 1/2 for Power 1, Pin 4/5 for Power 2 |
|
|
Operating Voltage |
DC9-56V |
|
Power Consumption |
10 Watts Max (without PoE load) |
|
Protection |
Reverse Polarity, Overload Current |
|
Environmental |
|
|
Operating Temperature |
-40℃ to +80℃ (-40 to 176 ℉) |
|
Storage Temperature |
-40℃ to +85℃ (-40 to 185 ℉) |
|
Operating Humidity |
5%~95% (non-condensing) |
|
Cooling |
Passive Cooling |
|
MTBF |
＞500,000 hours @Telcordia SR-332 GB 50°C |
|
LED Indicators |
|
|
P1 & P2 |
ON: Power is being supplied OFF: Power is not being supplied |
|
Fiber Port |
ON: Port connection is active Blinking: Data transmitted OFF: Port connection is not active |
|
RJ45 Port Amber LEDs |
ON: Port connection is active Blinking: Data transmitted OFF: Port connection is not active |
|
RJ45 Port Green LEDs |
ON: Port is operating at 1000 Mb/s OFF: Port is operating at 10/100 Mb/s |
|
Package Contents |
|
|
Device |
1 x Industrial Ethernet Switch |
|
Installation Kit |
1 x DIN-Rail Clip, 2x Wall-Mount Kits |
|
Documentation |
1 x Quick Start Guide |
|
1 x Warranty card |
|
|
Regulatory & Warranty |
|
|
Standard Compliance |
IEEE 802.3 Ethernet |
|
ISO |
Manufactured in ISO-9001facility |
|
Safety |
IEC62368-1:2020+A11:2020 |
|
EMI |
FCC Part 15B Class A, IEC 61000-3-2 |
|
EMS |
IEC61000-4-2 ESD: Contact:±8kV, Air:±15kV |
|
Shock |
IEC 60068-2-27 |
|
Free Fall |
IEC 60068-2-32 |
|
Vibration |
IEC 60068-2-6 |
|
Environmental |
RoHS 2011/65/EU Annex II(EU) |
|
Warranty |
5 Years |
- Download FileName：UF-IFS808G Unmanaged Industrial 8G+8SFP Fiber Switch Datasheet V1.0.pdf Size： 681KB
|
Model |
Description |
|
UF-IFS808G |
Unmanaged Industrial 8-Port 10/100/1000BASE-T + 8-Port 100/1000BASE-X SFP Fiber Switch |
|
SFP |
►100/1000Base-X SFP (to be purchased separately) Please select your SFP on our SFP Modules page for details. ► SFP module is to be purchased separately. |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
►9-56VDC Power Supply. Open Wire for Terminal Block ► Power Supply is to be purchased separately. |
