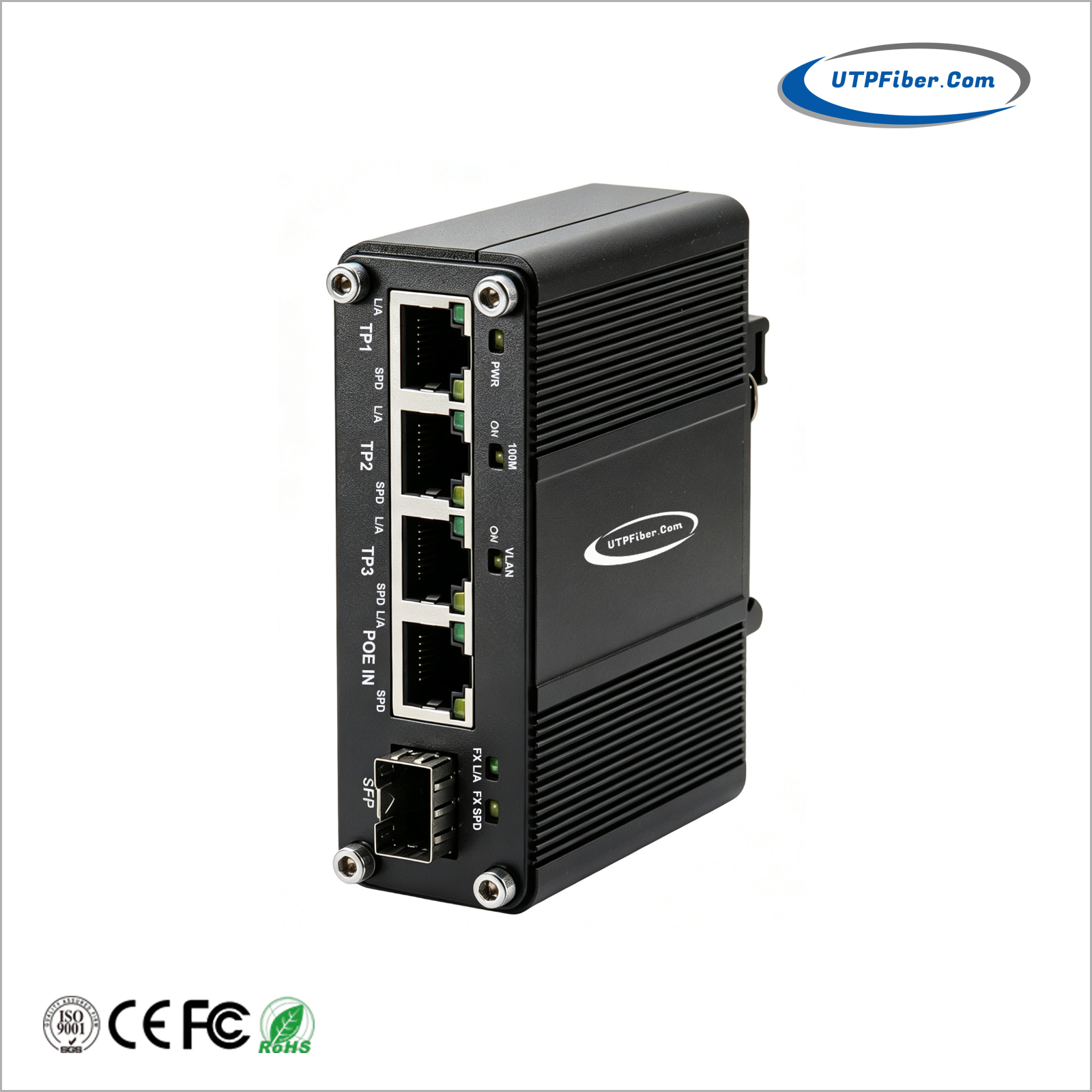

Physical Port

RJ45 port and speed

4 x 10/100/1000Base-T (1 x PoE IN + 3 x RJ45)

Fiber port and speed

1 x 100/1000Base-X SFP

DIP switch

100M: ON - FX 100M; OFF - FX 100M/1000M

VLAN: ON - VLAN enabled for TP1-TP3; OFF - VLAN disabled

Parameters

Ethernet standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit Ethernet over Fiber Optic

IEEE 802.3x Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Packet buffer

1Mbits

Maximum packet length

Up to 10K Bytes

MAC address table

2K

Transmission mode

Store and Forward (full/half duplex mode)

Exchange property

Delay time: < 7μs

Switch Fabric: 12Gbps

Throughput (packet per second): 8.93Mpps@64bytes

LED Indicator

PWR (Power Status)

ON: Power is supplied normally / OFF: No power input

RJ45 L/A (Green)

ON: Copper link active / Blinking: Data transmitting / OFF: Disconnected

RJ45 SPD (Amber)

ON: Operating at 1000 Mbps / OFF: Operating at 10/100 Mbps

FX L/A (Fiber Link)

ON: Optical fiber is connected / Blinking: Data transmitting

FX SPD (Fiber Speed)

ON: 1000M Fiber running / OFF: 100M Fiber running

Power Information

Power Input Interface

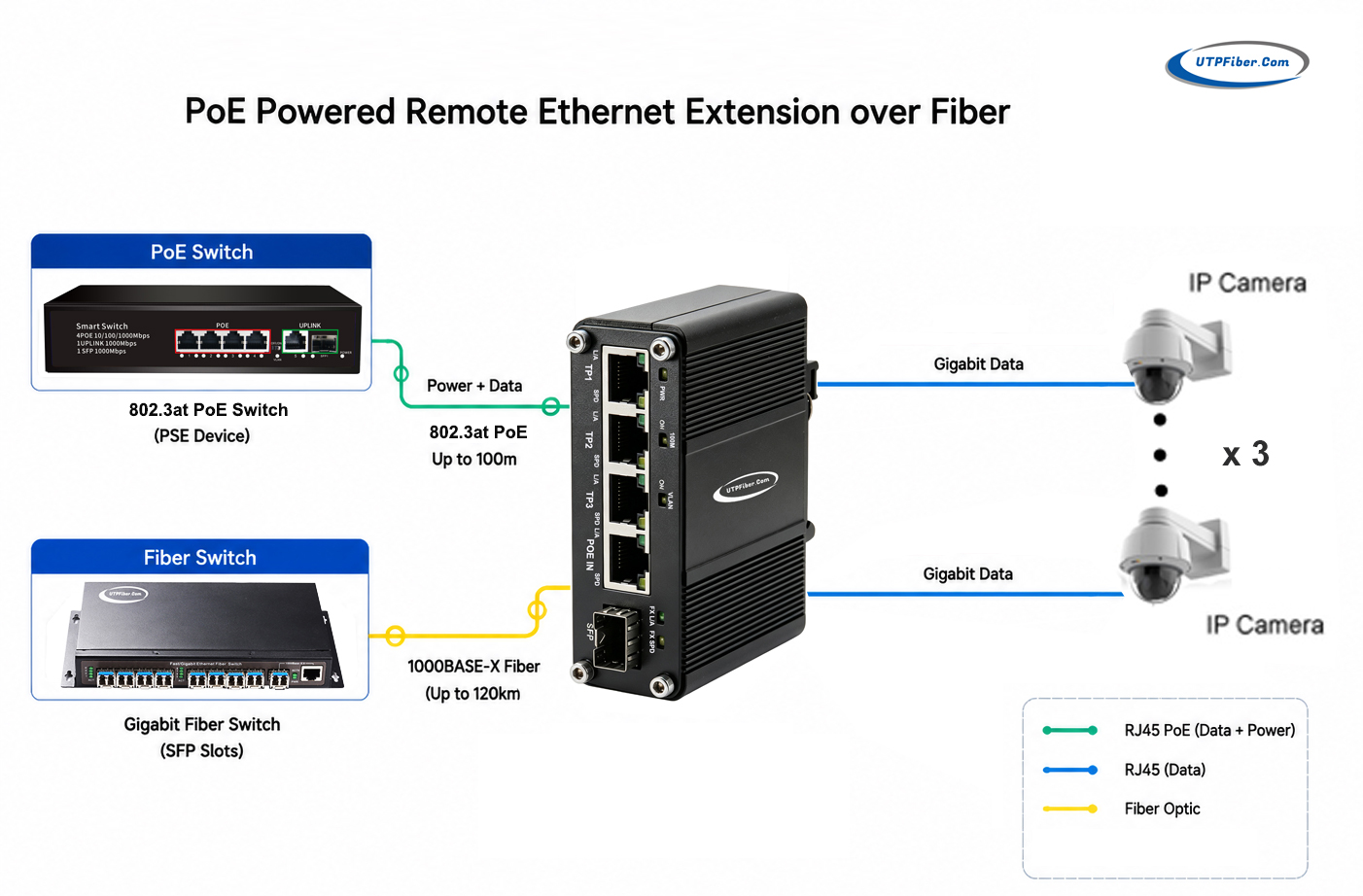

PoE Input via "PoE IN" RJ45 Port

PoE Standards

IEEE 802.3af / IEEE 802.3at compliant

Power consumption

5W Max.

Physical Property

Protection grade

IP40 aluminum housing

Cooling mode

Natural cooling, no fan design

Dimensions (L x W x H)

95 x 70 x 30 mm

Installation mode

DIN Rail or Wall-Mount

Weight

250g (device only)

Working Environment

Operating Temperature

-40℃ ~ +80℃

Operating Humidity

5%~90% non-condensing

Storage Temperature

-40℃ ~ +85℃

Warranty

MTBF

500,000 hours

Standard Warranty

5 years and lifetime technical support

Certification Standard

EMI

FCC Part15 Subpart B Class A, EN 55022 Class A

EMS

EN61000-4-2(ESD),

EN61000-4-3(RS),

EN61000-4-4(EFT),

EN61000-4-5(Surge),

EN61000-4-6(CS),

EN61000-4-8,

EN61000-4-11

Collision

IEC60068-2-27

Drop

IEC60068-2-32

Vibration

IEC60068-2-6

Safety grade

EN60950-1
