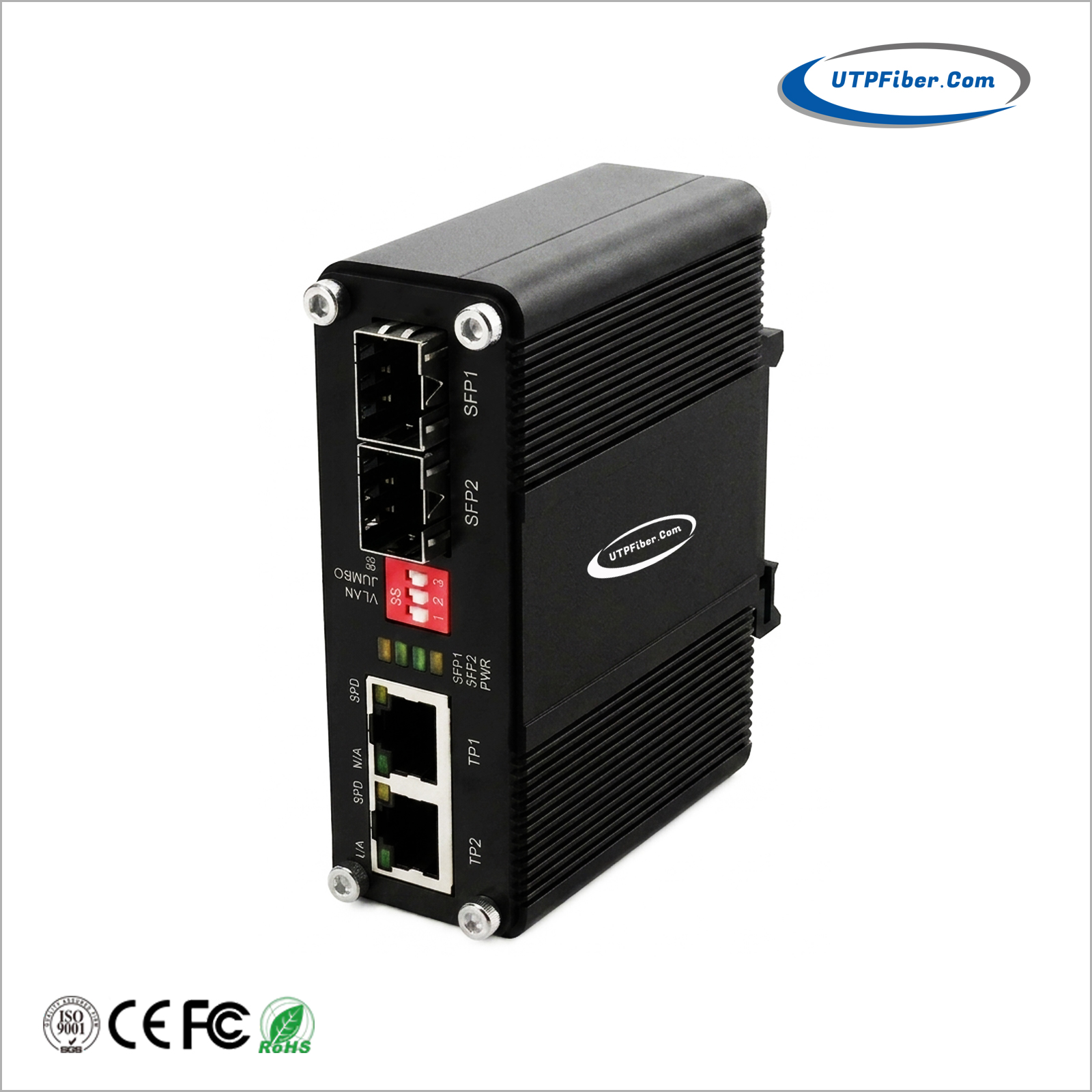

Mini Industrial PoE-Powered 2G+2SFP Media Converter with 30W PoE Extender
Model:UF-IS202GPD-EX
► Fully powered via remote IEEE 802.3bt PoE input, no power adapter is required
► Powerful DIP switch function: 1. Fiber redundant; 2. VLAN; 3. 10K Jumbo frame
► 30W PoE Passthrough Output: Uniquely delivers 30W PoE copper passthrough to power edge device
► 2-Port 10/100/1000Mbps RJ45 ports (1x PoE PD Input + 1x Data Output) for local network bridging
► 2-Port 1000Base-X SFP
The UF-IS202GPD-EX is an innovative, industrial-grade Gigabit Fiber Media Converter engineered to provide high-performance network extension and versatile power-delivery at the network edge. Featuring a 2-Port 1000Base-X SFP slot and 2-Port 10/100/1000Base-T RJ45 interfaces, this device seamlessly bridges long-distance optical fiber backhaul with local copper networks.
UF-IS202GPD-EX series can realize the optical line 1 + 1 redundancy protection in point-to-point mode via the DIP switch; it can provide Optical Port automatic protection switching. Via the DIP switch, the UF-IS202GPD-SP-AT can be configured as 2-port redundant media converter. When in the 2-port redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair.

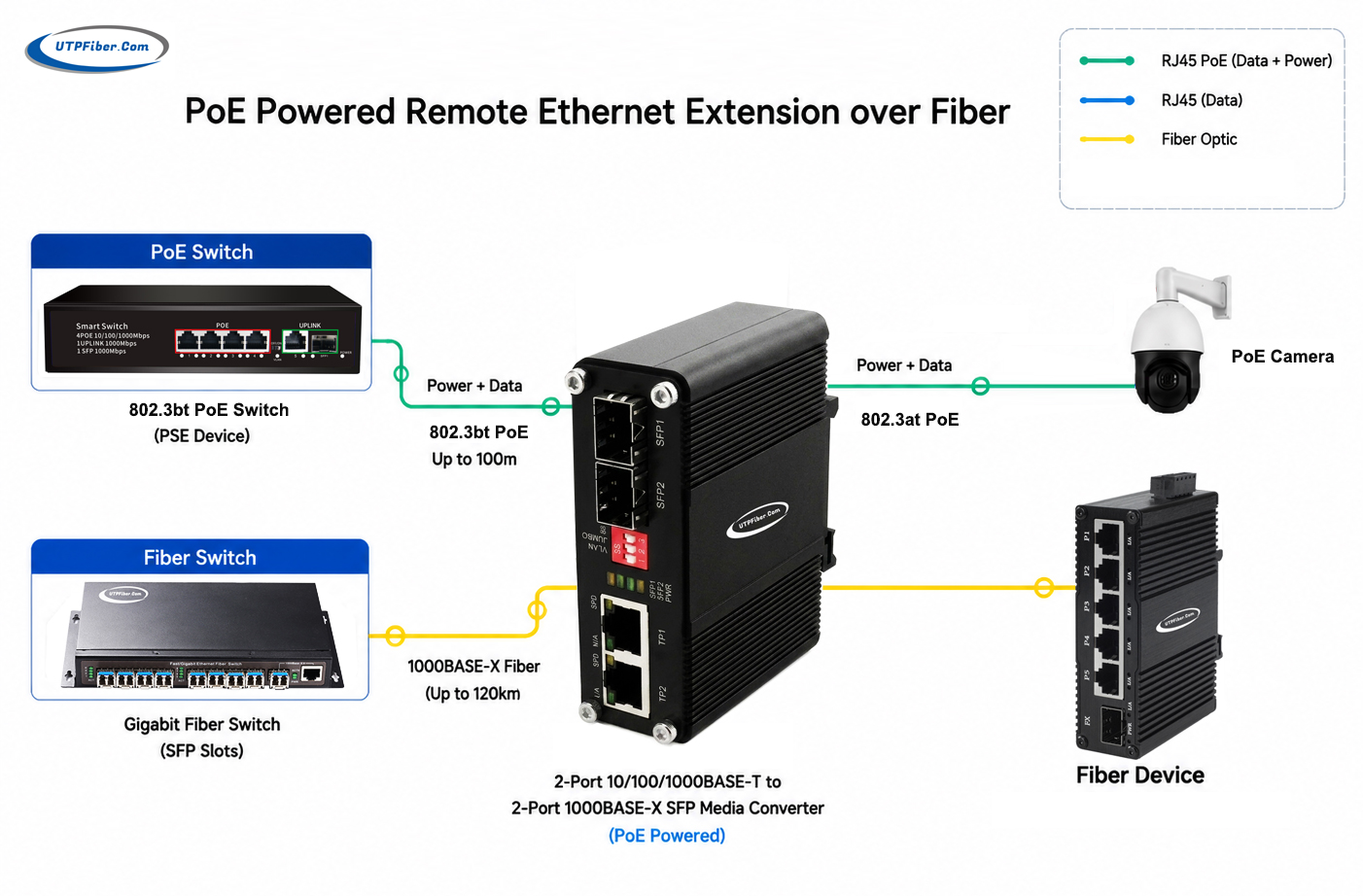

Designed as a high-power PoE Powered Device (PD), the unit draws its operational power directly from an upstream IEEE 802.3bt PoE switch or injector via its dedicated "PoE IN" port. This advanced architecture completely eliminates the need for local AC/DC power outlets, drastically lowering deployment costs and simplifying installations in outdoor, remote, or industrially harsh environments.
Setting a new standard for edge power management, this device integrates PoE Passthrough (Extender) functionality. Through its specialized hardware architecture, it delivers up to 30W IEEE 802.3af/at PoE output via its secondary RJ45 port to power standard PoE edge devices like IP cameras.
Housed in an ultra-compact, fanless IP40 aluminum enclosure, this media converter ensures rock-solid data and power transmission under extreme temperatures, making it the ultimate all-in-one solution for smart city surveillance, wireless backhaul, and industrial automation.
► PoE-Powered Convenience: Fully powered via remote IEEE 802.3bt PoE input, no power adapter is required
► Powerful DIP switch function: 1. Fiber redundant; 2. VLAN; 3. 10K Jumbo frame
► 30W PoE Passthrough Output: Uniquely delivers 30W PoE copper passthrough to power edge device
► Dual Gigabit Ethernet Ports: 2-Port 10/100/1000Mbps RJ45 ports (1x PoE PD Input + 1x Data Output) for local network bridging
► Gigabit SFP Slot: 2-Port 1000Base-X SFP, breaking copper network distance limitations via single-mode or multi-mode fibers.
► Industrial-Grade Design: Operates over extreme temperature ranges (-40°C to +75°C} with an IP40 aluminum casing, excellent ESD/Surge protection, and fanless passive cooling.
► Compact & Easy Deployment: Highly space-saving form factor (95 x 70 x 30mm) with plug-and-play DIN-Rail or Wall-mount installation.
|
Physical Port |
|
|
Copper Ports |
2 x 10/100/1000BASE-T RJ45 (1x PoE IN, 1x PoE OUT) Auto-MDI/MDI-X, Auto-Negotiation |
|
Fiber Ports |
2 x 1000Base-X SFP Slot |
|
Network Cable Requirements |
10/100/1000BASE-T: 2-pair UTP Cat3/4/5/5e/6 (Max 100m) or 100-ohm STP (Max 100m) |
|
Power Supply & PoE Delivery |
|
|
Power Input Interface |
PoE Input via "PoE IN" RJ45 Port |
|
PoE Standards |
IEEE 802.3bt compliant |
|
Input Voltage Range |
DC 48V - 57V |
|
PoE Output Interface |
PoE Output via "PoE OUT" RJ45 Port |
|
PoE Output Power |
IEEE 802.3at 30W |
|
Total Power Budget |
35W Max |
|
Power Consumption |
≤5 Watts Max (Self-consumption, without extender load) |
|
Ethernet |
|
|
Ethernet standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
Packet buffer |
1Mbits |
|
Maximum packet length |
Up to 10K Bytes |
|
MAC address table |
2K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Exchange property |
Delay time: < 7μs Switch Fabric: 12Gbps Throughput (packet per second): 8.93Mpps@64bytes |
|
LED Indicator |
|
|
PWR (Power Status) |
ON: Power is supplied normally / OFF: No power input |
|
RJ45 L/A (Green) |
ON: Copper link active / Blinking: Data transmitting / OFF: Disconnected |
|
RJ45 SPD (Amber) |
ON: Operating at 1000 Mbps / OFF: Operating at 10/100 Mbps |
|
P2 (PoE Output) |
ON: PoE power output is normal and load connected |
|
SFP1 (Fiber Link) |
ON: Optical fiber is connected / Blinking: Data transmitting |
|
SFP2 (Fiber Link) |
ON: Optical fiber is connected / Blinking: Data transmitting |
|
Physical Property |
|
|
Casing Protection |
Aluminum Enclosure, IP40 Rated |
|
Cooling Mechanism |
Natural Passive Cooling (Fanless) |
|
Dimensions (L x W x H) |
95 x 70 x 30 mm |
|
Installation Mounting |
35mm DIN-Rail or Wall-mount Bracket installation |
|
Weight |
0.25 Kg (bare device weight) |
|
Working Environment |
|
|
Operating Temperature |
-40℃ ~ +75℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃ ~ +85℃ |
|
Warranty |
|
|
MTBF |
>500,000 hours |
|
Standard Warranty |
5 years and lifetime technical support |
|
Certification Standard |
|
|
ISO |
Manufactured in ISO-9001 facility |
|
EMI |
FCC Part15 Subpart B Class A, IEC 61000-3-2 |
|
EMS |
IEC61000-4-2 ESD: Contact:±8kV, Air:±15kV IEC61000-4-5 Surge: Power: ±6kV; RJ45:±4kV/±6kV(PoE) |
|
Shock |
IEC60068-2-27 |
|
Free Fall |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Environmental |
RoHS 2011/65/EU Annex II(EU) |
|
Enclosure Protection |
IEC 60529 IP40 |
- Download FileName：UF-IS202GPD-EX Mini Industrial PoE-Powered 2G+2SFP Media Converter with 30W PoE Passthrough Datashee Size： 784KB
|
Model |
Description |
|
UF-IS202GPD-EX |
802.3bt PoE Powered Industrial 2G+2SFP Media Converter w/ 1-Port 802.3at 30W PoE Extender Function |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed (Wall-mount bracket optional) |
|
Power Options |
► IEEE 802.3bt 48V~57V DC in-line power |
