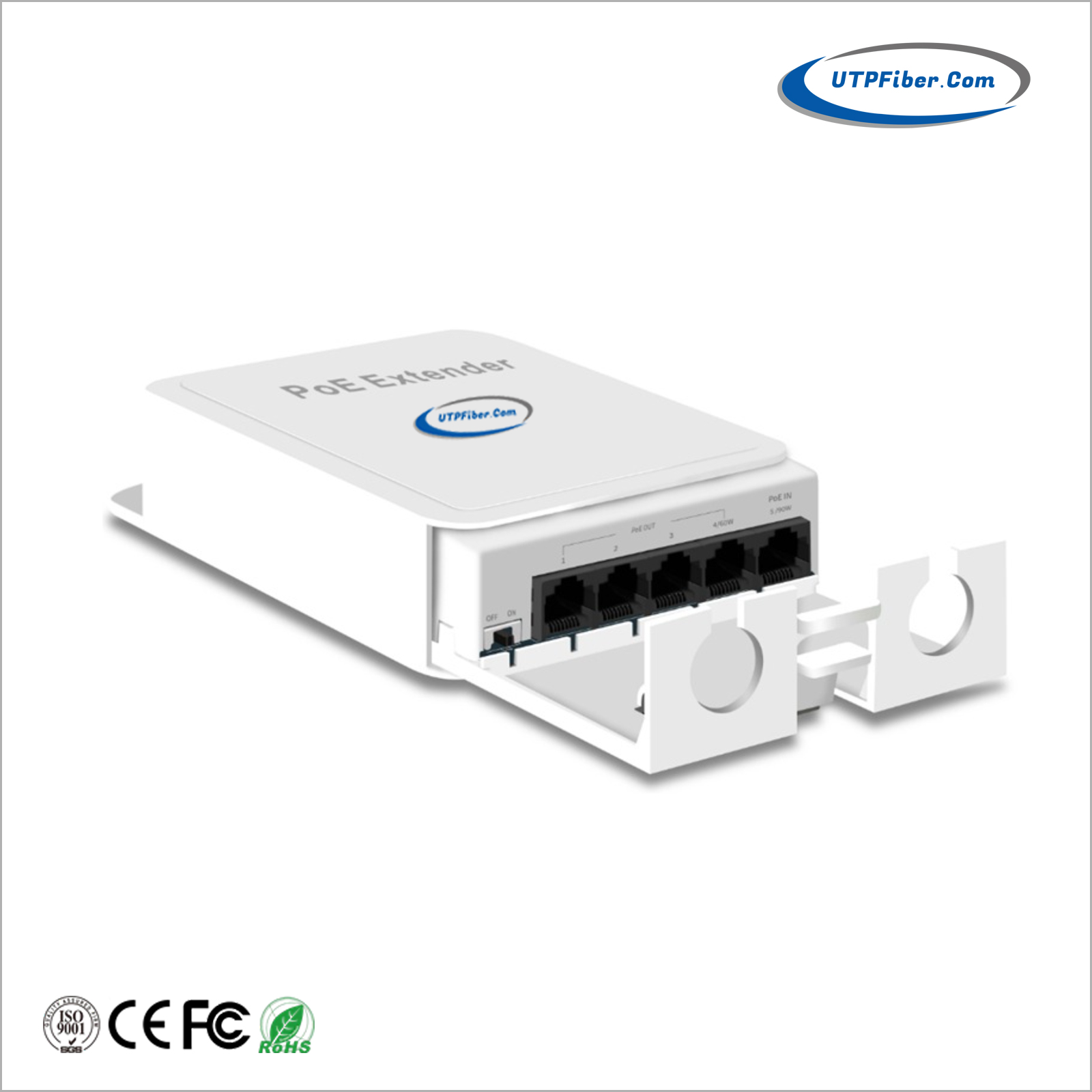

Outdoor IP55 Waterproof 1 IN 4 OUT 10/100M PoE Extender

UF-WP014 is an outdoor 5 Port 100M PoE Extender, which provides 1*100Mbps IEEE802.3af/at/BT(PoE) powered port input and 4*100Mbps IEEE802.3af/at/BT(PoE) powered ports output. The whole power is 90W, the maximum output power of the first output port is 60W, and the maximum output power of the 2nd-4th output ports is 30W, which can be applied to outdoor use scenarios. No need for additional power adapter, powered by PoE network. Support wall mount, small size, save space, suitable for more positions. Support 3-level cascading, can connect PoE AP, camera, phone and other PoE devices, increase PoE coverage at low cost.

► 1*IEEE802.3af/at/bt (PoE) powered port input, supports up to 90W

► 1*IEEE802.3af/at/bt(PoE) powered port output, supports up to 60W

► 3*IEEE802.3af/at (PoE) powered port output

► With network and POE relay extension role

► With outdoor IP55 waterproof function

► Supports 100Mbps Fast Ethernet, powering up to 4 devices simultaneously

► Plug-and Play no configuration required

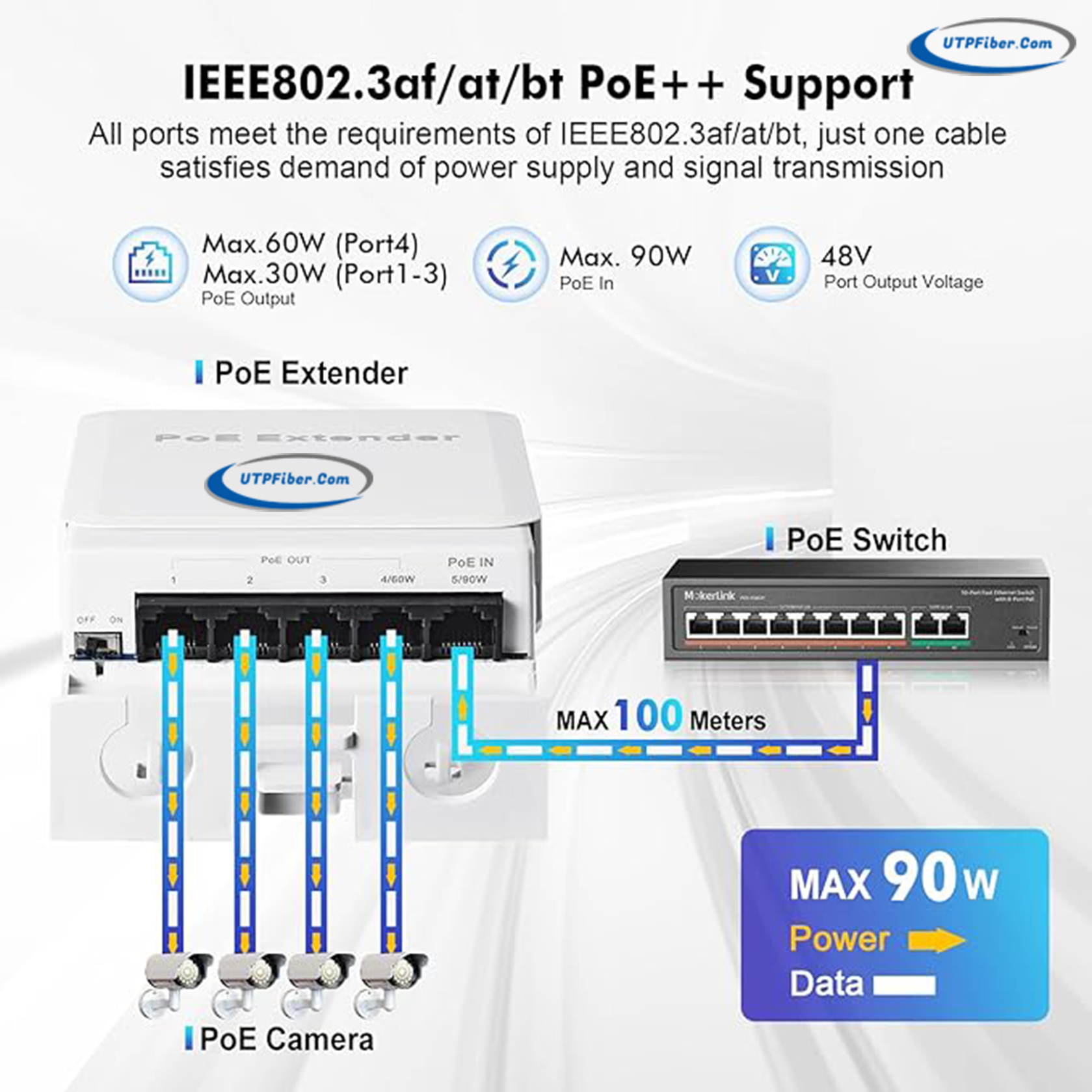

1 IN 4 OUT 100M PoE Extender Application

Interfaces
PoE Input Port	1 x 10/100BASE-TX Ethernet with IEEE 802.3bt 90W PoE++ “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE Output Port	1 x 10/100BASE-TX Ethernet with IEEE 802.3bt 60W PoE++ “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector 3 x 10/100BASE-TX Ethernet with IEEE 802.3af/802.3at 30W PoE+ “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector
Cascade connection	Support 3 grade
Power over Ethernet
PoE Standard	PoE In Port IEEE 802.3bt Power over Ethernet Plus Plus end-span and mid-span PD class 4 PD Per PoE Out Port IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE
PoE Power	PoE In Port 44~57V DC, max. 90 watts input Per PoE Out Port 44~57V DC, max. 85 watts output in total
PoE Pin Assignment	PoE In Port 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) Per PoE Out Port 1/2 (+), 3/6 (-), end-span (Mode A)
Switch Property
Standards	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3az Energy-Efficient Ethernet IEEE 802.3x Flow Control
Data Rate	10/100Mbps
Forwarding Modes	Store and forward
Transmission Distance	120m
MAC Address Table	2K
Switching Capacity	1Gbps
Switch Throughput	0.74Mpps @ 64 bytes
Jumbo Frame	9K
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode
Environment
Operating Temperature	- 10~+55 degrees C
Storage Temperature	- 30~+70 degrees C
Operating Humidity	10~90% (non-condensing)
Physical Parameter
Dimensions (LxWxH)	148x98x34mm
Gross Weight	100g
Net Weight	80g
Material	ABS plastic case
LED Display	PoE working status, Ethernet
Certiﬁcations
Certiﬁcations	FCC Part 15B RoHs Directive 2011/65/EU Low Voltage Directive 2014/35/EU Electromagnetic Compatibility Diective 2004/108/EC

Download FileName：UF-WP014 Outdoor IP55 Waterproof 1 IN 4 OUT BT 10100M PoE Extender Datasheet V1.0.pdf Size： 799KB

Model	Description
UF-WP014	10/100Mbps Outdoor IP55 Waterproof PoE Extender: 1 x 802.3bt 90W PoE Input, 1 x 802.3bt 60W PoE Output, 3 x 802.3at 30W PoE Output, DIP Switch for VLAN
Mounting Options	► Wall-mount or Desktop
Power Options	► Powered by PoE, no need external power adapter

Model:UF-WP014
