Industrial IP67 1-Port 802.3at PoE+ 30W to 1-Port 802.3af/at PoE+ Extender
Model:UF-WP01GP30
► 10/100/1000Mbps Ethernet Ports
► IP67-rated waterproof industrial grade enclosure, designed for outdoor use
► With 6KV Surge protection
► Working temperature can be up to -40~75℃.
► Input port IEEE802.3af/at compliant, support up to 30 watts PoE power input. Output PoE port 802.3af/at compliant, support to deliver up to 25 watts PoE power
UF-WP01GP30 is an Industrial grade inline Cat5e/Cat6 PoE extender, self powered, that extends the twisted cable reach by another 100m for each instance. With very little load (1.2W of budget needed), cascading units can extend cable reach up to 500m. Such extender is ideal for PoE devices that must be installed out of the common 100m reach of regular cabling.
On a 802.3af device, the extender doubles the twisted pair cable loop by a simple in-line insertion. The UF-WP01GP30 works with both 802.3af and 802.3at standards.
► 10/100/1000Mbps Ethernet Ports
► IP67-rated waterproof industrial grade enclosure, designed for outdoor use
► With 6KV Surge protection
► Working temperature can be up to -40~75℃.
► Input port IEEE802.3af/at compliant, support up to 30 watts PoE power input. Output PoE port 802.3af/at compliant, support to deliver up to 25 watts PoE power
► Extends an additional 100m for PoE network. Daisy chain support connection up to 4 PoE Extenders for a total PoE+ network extension of 500m (1,640 ft.)
► Wall-mount design, plug and play, no additional power supply required
|
Ethernet Port |
|
|
PoE Input Port |
10/100/1000Base-TX RJ45, IEEE 802.3at PoE Input Input Power 50~57V DC, Max 30W |
|
PoE Output Port |
1*10/100/1000Base-TX RJ45, IEEE 802.3at/af PoE Output Output Power: Max 22W in total |
|
Cascade connection |
Support 4 grade |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
|
PoE Power Supply Type |
Mid-span and End-span |
|
PoE Pin Assignment |
1/2(+), 3/6(-) |
|
Switch Property |
|
Standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control |
|
Forwarding Modes |
Store and forward |
|
Transmission Distance |
100m |
|
MAC Table |
8k |
|
Switching Capacity |
4Gbps |
|
Packet Forwarding Rate |
2.98Mpps |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Jumbo Frame |
10kB |
|
Environment |
|
|
Surge Immunity |
6KV, Standard: IEC6000-4-5 |
ESD Protection |
6KV 1a Contact Discharge Level 3, 8KV 1b Air Discharge Level 3, Standard: IEC61000-4-2 |
|
Protection Level |
IP 67 |
|
Operating Temperature |
- 40~+75 degrees C |
|
Storage Temperature |
- 40~+85 degrees C |
|
Operating Humidity |
0~95% (non-condensing) |
|
Physical Parameter |
|
|

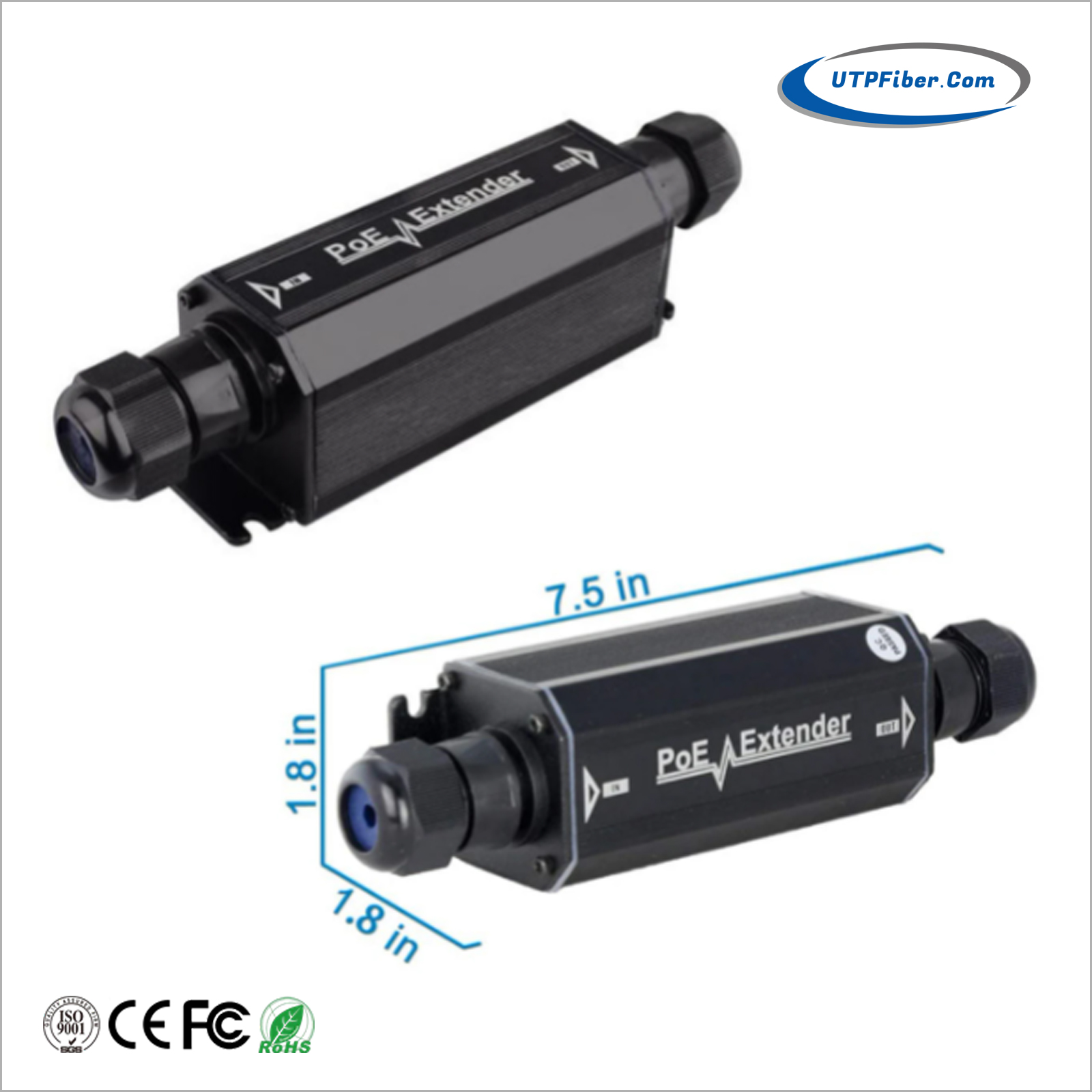

Dimensions (W*D*H) |
185mm*45mm*45mm |
|
Gross Weight |
612g |
|
Net Weight |
478g |
|
Material |
Aluminum |
|
Certifications |
|
|
Certifications |
CE, FCC, RoHS |
- Download FileName：UF-WP01GP30 Outdoor Industrial Waterproof 30W PoE Extender Datasheet V1.0.pdf Size： 665KB
|
Model |
Description |
|
UF-WP01GP30 |
Industrial IP67 1-Port 802.3at PoE++ 30W to 1-Port 802.3af/at PoE+ Extender |
|
Mounting Options |
► Wall-Mounted or Shelf-Monted |
