Physical Port

RJ45 port and speed

6-Port 10/100Base-TX RJ45

Fiber port and speed

2-Port 100Base-FX (SC in default, FC, ST optional)

Management Port

RS-232 interface, RJ45 connector, 115200 bps, 8 data bits, No parity, 1 stop bit (115200, 8, N, 1)

L2 Parameters

Standards

IEEE 802.1x authentication

IEEE 802.1q-Tagging

IEEE 802.1p-Qeueing Layer 2 QoS/CoS with min. 4 Queues per Port IEEE 802.1w RSTP rapid spanning tree

IEEE802.3 10Base-T Ethernet

IEEE802.3u 100Base-TX/FX Fast Ethernet

IEEE 802.3ad Trunking

IEEE802.3az energy efficient Ethernet technology

IEEE 802.3x flow control

IEEE 802.1D Spanning Tree

IEEE802.1ab LLDP

Packet buffer

1Mbits

Maximum packet length

Up to 10K

MAC address table

8K

Transmission mode

Store and Forward (full/half duplex mode)

Exchange property

Delay time: < 7μs
Backplane bandwidth: 1.8Gbps
Packet forwarding rate: 1.2M

Software Features

System Management

l   Supports user management and account settings

l   Supports local system logging and remote log output

l   Supports configuration import and export

l   Supports SNTP client for time synchronization

l   Supports real-time device status monitoring (e.g., CPU/memory utilization and device temperature)

Layer 2 Management

l   Port status and traffic management; supports SFP module DDM diagnostics

l   Port VLAN and VLAN tagging (Access, Trunk, and Hybrid modes)

l   QinQ VLAN support; GVRP dynamic VLAN support

l   QoS support (DSCP mapping, SP scheduling algorithm, and port priority)

l   Spanning Tree Protocols (RSTP/MSTP); ERPS protocol support (redundancy switching time ≤ 20ms)

l   LACP link aggregation with multiple algorithms (based on MAC, IP, or port); supports up to 8 groups

l   Static multicast, IGMP Snooping, and GMRP dynamic multicast support

Layer 3 Functions

Static routing (optional)

Device Security

l   Supports port isolation

l   Supports static MAC address binding

l   Supports MAC address learning limits

l   Supports storm suppression (broadcast, unknown unicast, and unknown multicast)

l   Supports secure access via HTTPS/SSL v3, RADIUS, and SSH v2.0

l   Supports ACL-based traffic control (filtering based on EtherType, VLAN, ICMP, IGMP, UDP, MAC, etc.)

l   Supports IEEE 802.1X authentication

l   Supports loop detection

l   Supports DHCP Snooping, Option 82, 802.1X secure access, and hierarchical management

l   Supports DDoS protection, port isolation, and ARP rate limiting

Device Management

l   Supports secure web-based configuration via HTTPS and CLI configuration management via Console port

l   Supports SNMP v1/v2c/v3 protocols and LLDP

l   Supports DHCP server and DHCP client management

l   Supports port cable diagnostic testing

l   Supports PING connectivity testing

l   Supports port mirroring

Alarm Functions

l   Relay Alarm: Supports alarms for power failure, optical link faults, etc.

l   Alarm LED Settings: Configuration for alarm indicator lights.

l   Temperature Alarm Settings: Configuration for temperature threshold alerts.

l   Trap Settings: Configuration for SNMP traps.

l   Power Settings: Configuration for power supply monitoring.

l   ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

UTP-VIEW Management

Supports one-click device scanning

Supports batch IP address modification

Supports real-time online device monitoring and management

Supports one-click network topology visualization

Supports device alarm management

LED Indicator

Power

Connect-always

RJ45

Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle

Fiber

Link/Act: connect-always; data exchange-twinkle

Power Information

Power access mode

Phoenix terminal

Redundant power input

DC 9-56V

Overload protection

Yes

Power reverse

Support

Power consumption

Full-load<10W

Physical Property

Protection grade

IP40 aluminum case

Cooling mode

Natural cooling, no fan design

Dimensions

138mm x 108mm x 49mm (L x W x H)

Installation mode

DIN-Rail Installation

Weight

680g

MTBF

≥300000 hours

Certification Standard

EMI

FCC Part15 Subpart B Class A,

EN 55022 Class A

EMS

EN61000-4-2(ESD),

EN61000-4-3(RS),

EN61000-4-4(EFT),

EN61000-4-5(Surge),

EN61000-4-6(CS),

EN61000-4-8,

EN61000-4-11

Collision

IEC60068-2-27

Drop

IEC60068-2-32

Vibration

IEC60068-2-6

Safety grade

EN60950-1

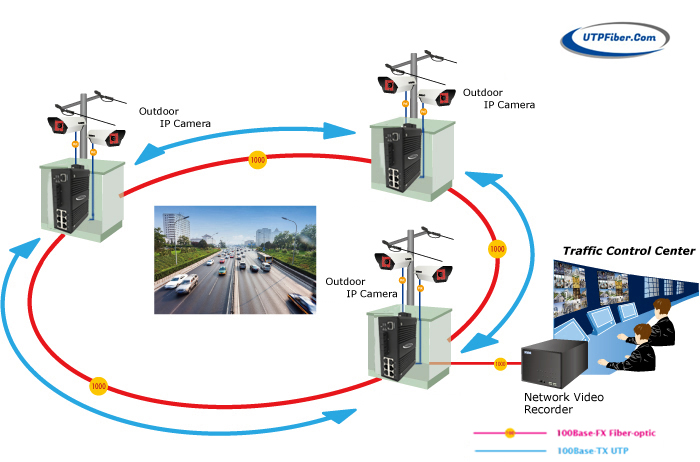

Model

Description

UF-MIES206-2FSC

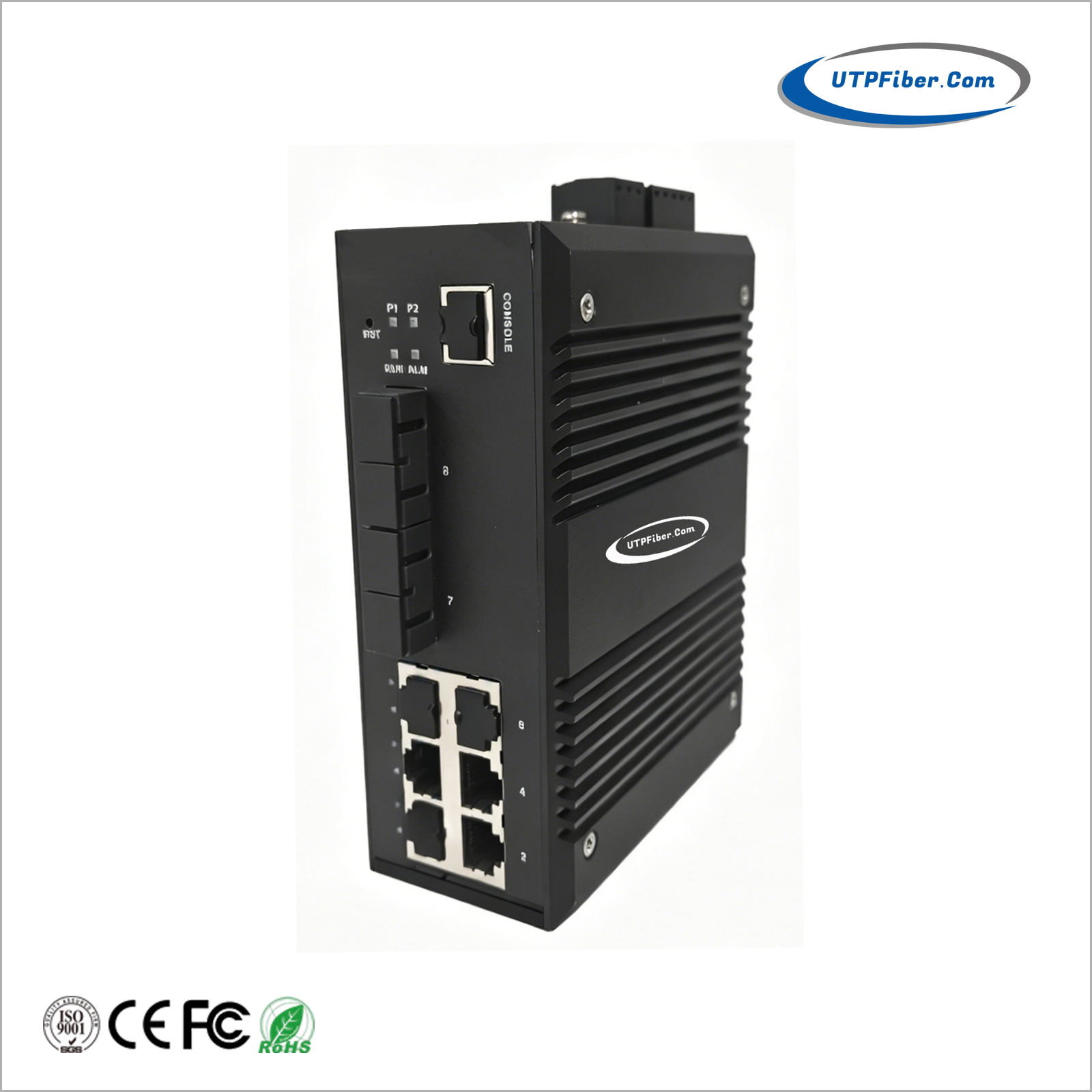

L2+ Managed Industrial 6-port 10/100TX + 2-Port 100Base-FX Ethernet Switch, 1310nm SC MM 2KM, DC9V-56V power input

UF-MIES206-2FSC20

L2+ Managed Industrial 6-port 10/100TX + 2-Port 100Base-FX Ethernet Switch, 1310nm SC SM 20KM, DC9V-56V power input

UF-MIES206-2FSC40

L2+ Managed Industrial 6-port 10/100TX + 2-Port 100Base-FX Ethernet Switch, 1310nm SC SM 40KM, DC9V-56V power input

Mounting Options

► DIN-Rail Installation, Default DIN-Rail Bracket installed.

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
