Industrial M12 IP40 4-Port 10/100TX 802.3at PoE + 1-Port 10/100TX Ethernet Switch

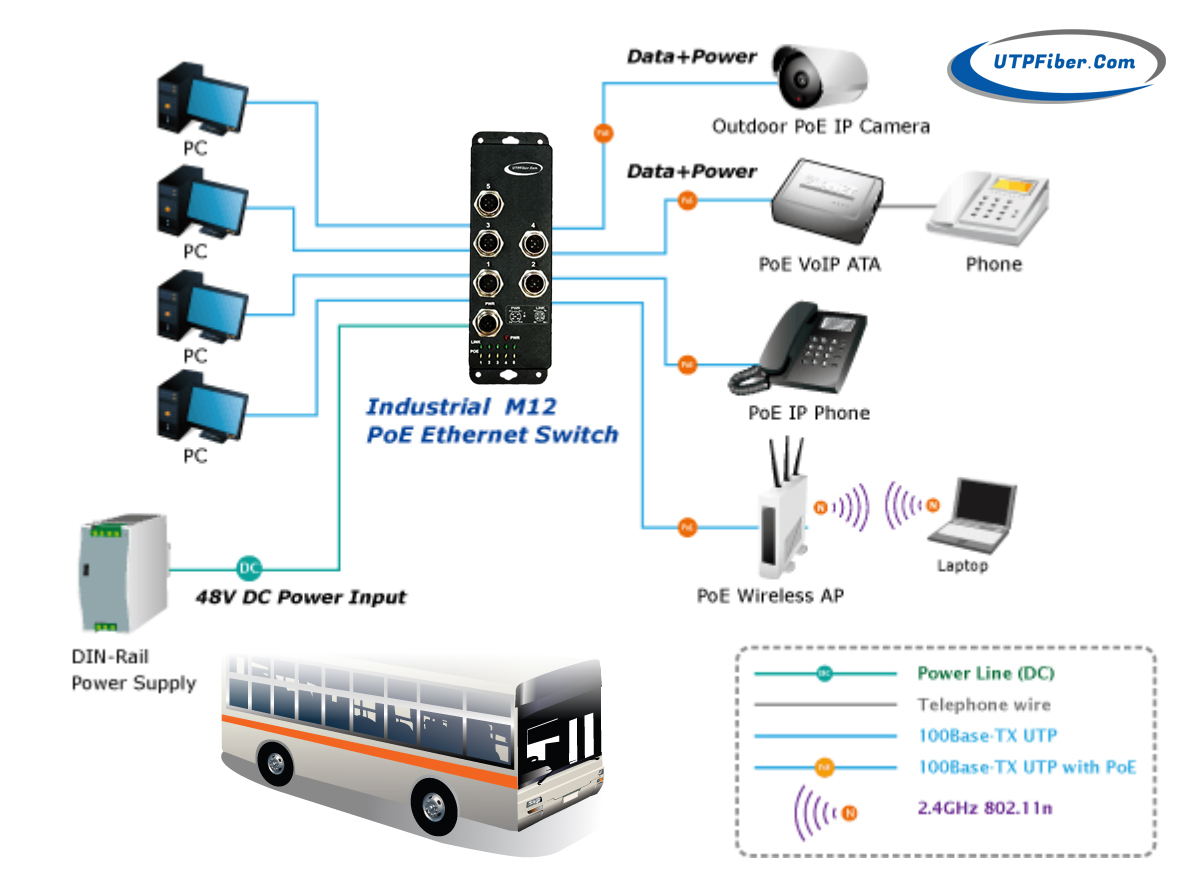

UTP UF-IES005P-M12 is an industrial-grade robust and vibration-proof PoE+ switch for a wide range of applications in factories or moving trains as it guarantees a reliable performance under vibration and shock. It features four 10/100BASE-TX auto-negotiation waterproof/dustproof M12 connectors with IEEE 802.3at PoE+ injector function; each PoE+ port provides 30 watts of PoE output. The M12 connector provides tight and strong connection, and ensures stable Ethernet operating performance withstanding humidity, dirt, dust, shock, vibrations, heat and cold. The compact, IP40-rated aluminum case of the UF-IES005P-M12 allows wall mounting for efficient use of cabinet space.

Being able to operate under the temperature range from -40 to 80 degrees C, the UF-IES005P-M12 can be placed in almost any difficult environment. The UF-IES005P-M12 also possesses an integrated power supply source with wide range of voltages (48 to 57V DC) for worldwide high availability applications requiring dual or backup power inputs. The M12 Male Plug redundant power input end has over-current, over-voltage, and EMC protection. The M12 Female Plug has excellent Sealing, solidity, and EMC protection properties enabling the series of products to adapt to harsh and dangerous industrial environments. Then, it can provide reliable and convenient solutions for users' Ethernet device networking

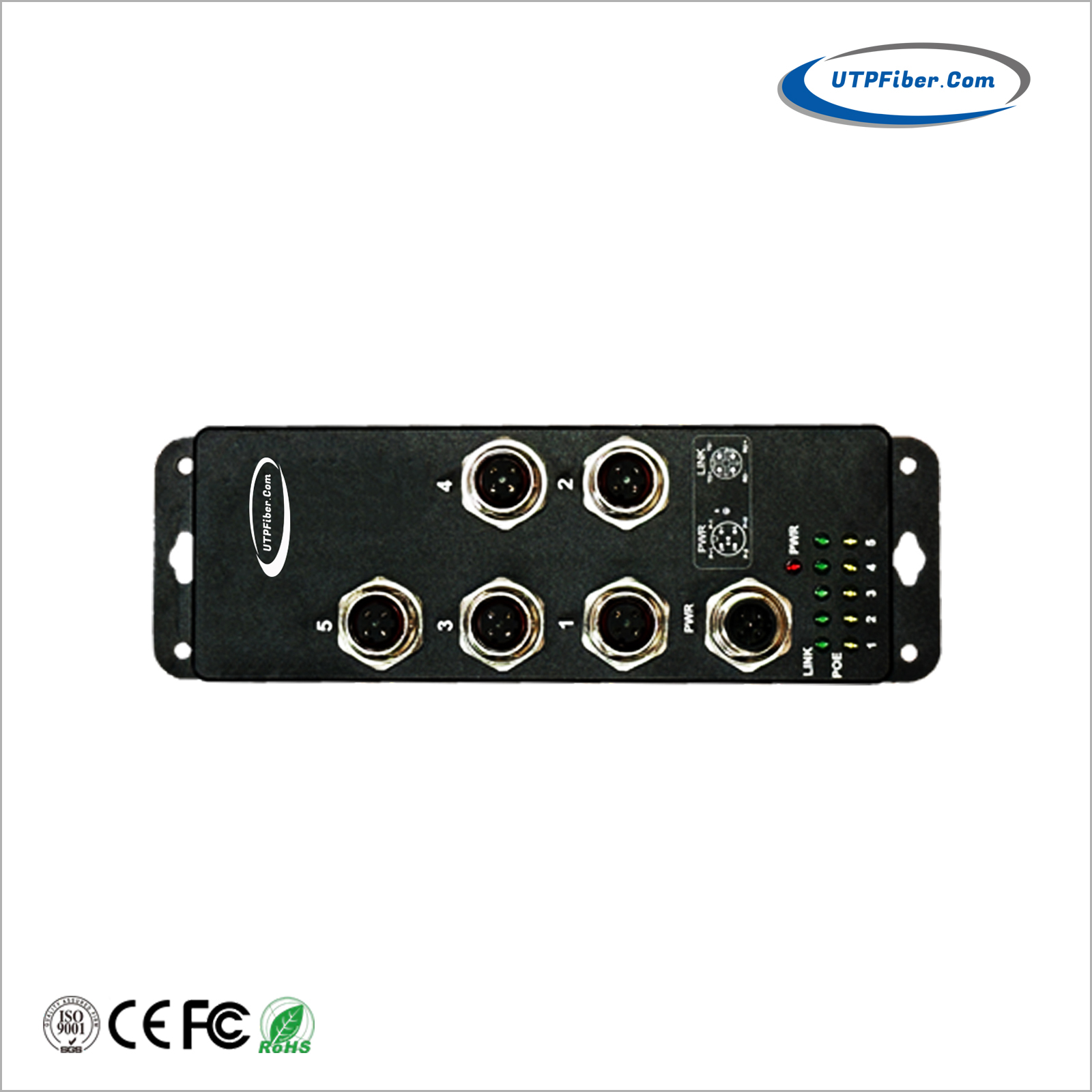

► 4 x M12 (D-code) 10/100TX 802.3at PoE+ ports

► 1 x M12 (A-code) power port

► M12 (D-coded Female) Connector with IP67 Rated Protection

► EN50155 compliant for rolling stock and railway applications

► 1.6Gbps switching capacity

► RJ45 Port Support Auto MDI / MDI-X Function

► Auto Negotiation Speed, Half / Full Duplex

► Store-and-Forward Switching Architecture

► Redundant Power Input: 48~57VDC

► Power Polarity Reverse Protection

► Overload Current Protection

► Wall Mountable

► -40°C to 80°C (-40°F to 176°F) operating temperature

Product Introduction
Model No.	UF-IES005P-M12
Product Name	Industrial M12 4-Port 10/100TX 802.3at PoE + 1-Port 10/100TX Ethernet Switch, M12 Connector (D-Coded); -40° to 80°C
Product Description	1-Port 10/100Base TX Uplink + 4-Port 10/100Base Tx Downlink
Port Description	5-Port M12 D-coded 4-pin Female Plug connection ports
Ethernet Interface
RJ-45 Port Connector Type	10/100BaseT(X) automatic detection, full/half duplex MDI/MDI-X adaptive
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
Power Pin Assignment	1/2(+), 3/6(-)
PoE Budget	120 watts @48-57V DC input
Power Parameters
Power	l Access terminal: M12 A-coded 5-core male terminal block l Power Input (DC): DC48~57V (Dual power), support reverse connection protection
LED Indicator	l Power Indicator：Red l Interface indicator: Link (Green)
Standards
Network Protocols	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x full-duplex flow control
Twisted Pair	l 10BASE-T: Cat3,4,5 UTP (≤100 meter) l 100BASE-TX: Cat5 or later UTP (≤100 meter)
M12 Connector sequence	D- 1——TD+, 2——TD-，3——RD+，4——RD-A-coded 5-core male connector 1——P-1 (Power supply -1)， 2——P+1 (Power supply +1), 3——P-2 (Power supply -2)， 4——P+2 (Power supply +2), 5——Ground
Switch Properties
Transmission Method	Store and Forward
MAC Table Size	2K
Packet Buffer Size	1Mbit
Bandwidth	1.6G
Switching Delay	＜10μs
Power Consume	＜3W
Physical Characteristics
IP Rating	IP40
Enclosure	Aviation standard aluminum alloy
Installation	Wall-mounted rail
Weight	0.55kg
Dimensions (L x H x D)	203 x 48 x 50mm
Environmental Limits
Working temperature	-40 to 80℃ (-40 to 176°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	EN 62368-1(LVD), EN50155
EMI	FCC Part 15 Subpart B Class A，EN 55032 Class A
EMS	IEC(EN)61000-4-2(ESD): ±8kVContact, ±8kV Indirect, ±15kVAir discharge IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): Power: ±4kV; Data: ±2kV IEC(EN)61000-4-5(Surge): Power: ±4kV CM/±2kV DM; Data: ±4kV/±2kV DM; IEC(EN)61000-4-6(RF conduction): 3V(10kHz～150kHz), 10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction): 30V cont. 300V, 1s IEC(EN )61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF
Time	300 000hrs
Warranty
Warranty Period	5 years
Package Contents
Device	1 x UF-IES005P-M12-67 switch
Documentation	1 x quick installation guide 1 x warranty card

Download FileName：UF-IES005P-M12 Industrial IP40 5-Port 100M M12 802.3at PoE+ Switch Datasheet V1.0.pdf Size： 851KB

Model	Description
UF-IES005P-M12	Industrial M12 4-Port 10/100TX 802.3at PoE + 1-Port 10/100TX Ethernet Switch, 48~57VDC Power Input
Mounting Options	► Wall Mount
Power Options	► AC to DC Power Supply
Power Options	► Power Supply is to be purchased separately.
Cable	► M12 Plug connecting cable, needs to be purchased separately

Industrial M12 IP40 4-Port 10/100TX 802.3at PoE + 1-Port 10/100TX Ethernet Switch

Model:UF-IES005P-M12
