► 4 x 10/100Base-TX + 2 x 100Base-FX
► Redundant 12~58VDC Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature

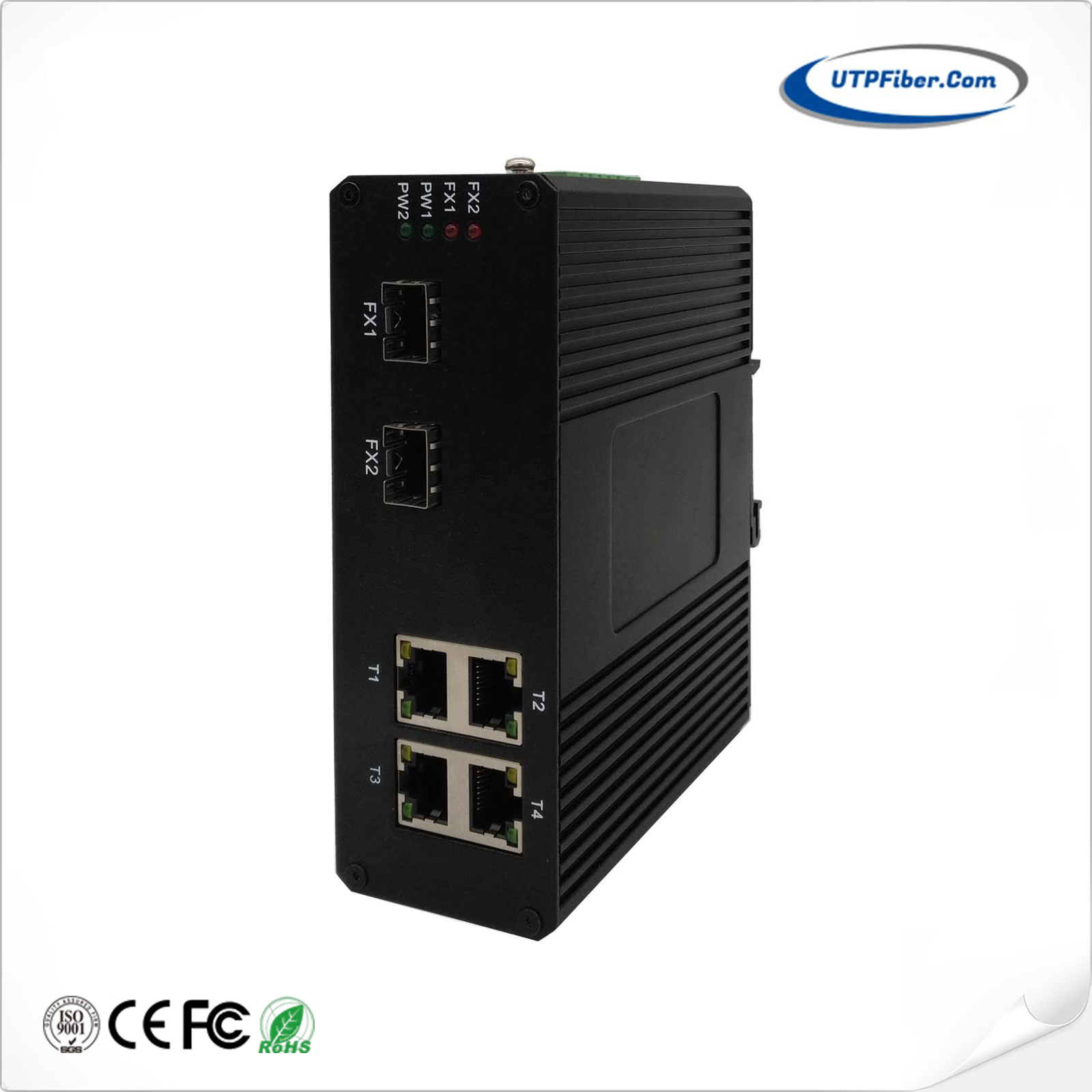

UF-IES204 series is a 4 ports 10/100Base-TX + 1 port 100Base-FX Industrial Ethernet switch. The Switch 4 TP ports and 2 fiber ports. TP (RJ45) support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
► 4 x 10/100Base-TX + 2 x 100Base-FX
► 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► 1M bits frame buffer memory
► 9K Bytes Jumbo Frame
► Redundant 12~58VDC Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Ethernet |
|
Standards: |
IEEE802.1 10Base-T, IEEE802.3u 100Base-TX |
IEEE802.3 100Base-FX |
|
IEEE802.3X Flow Control |
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
148,800pps (100Mbps) |
|
Packet Buffer Memory: |
512K bits |
Processing Type: |
Store-and-Forward |
Address Table Size: |
1024 MAC Addresses |
Interface |
|
Connector: |
4 x RJ45 |
Optical Port: |
2 x 100Base-FX (SFP, SC, FC, ST Optional) |
Environmental |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Relative Humidity: |
5% to 95% non-condensing |
MTBF |
> 200,000 hrs |
Electrical and Mechanical |
|
Input Power: |
12~58VDC, Redundant Power (6-pin Terminal Block) |
Power Consumption: |
5W Max. |
Protection: |
|
Power Input Overload: |
Automatic Resettable |
Reverse Polarity: |
Present |
LED Indicators: |
|
Power: |
Power1, Power2 Status |
Ethernet (Per Port): |
Link/Activity |
Fiber Port: |
FX1, FX2 |
Dimensions (WxDxH): |
50 x 108 x 139 mm |
Weight: |
0.6Kg |
Casing: |
Metal Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Regulatory Approvals |
|
ISO9001 |
|
EN55022:2010+AC: 2011, Class A |
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
EN 61000-3-3: 2013 |
|
EN55024:2010 |
|
IEC 61000-4-2: 2008 (ESD) |
|
IEC 61000-4-3: 2010 (RS) |
|
IEC 61000-4-4: 2012 (EFT) |
|
IEC 61000-4-5: 2014 (Surge) |
|
IEC 61000-4-6: 2013 (CS) |
|
IEC 61000-4-8: 2009 (PFMF) |
Model |
Description |
UF-IES204 |
Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-Port 100Base-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
UF-IES204-20 |
Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-Port 100Base-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
UF-IES204S-20 |
Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-Port 100Base-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
UF-IES204F-20 |
Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-Port 100Base-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
UF-IES204-SFP |
Industrial 4-Port 10/100BASE-T + 2-Port 100BASE SFP Ethernet Switch |
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options |
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
► Power Supply is to be purchased separately. |
