Unmanaged Industrial 2-Port 10/100TX 802.3at PoE + 2-Port 100FX Ethernet Switch

Model:UF-IES202P Series

►    2 x 10/100Base-TX + 2 x 100Base-FX

►    Supports IEEE 802.3at PoE+ (30W per port)

►    Redundant 48~57VDC Power Inputs

►    Supports Wall-mount and DIN-Rail installation

►    -40°C to 80°C (-40°F to 176°F) operating temperature

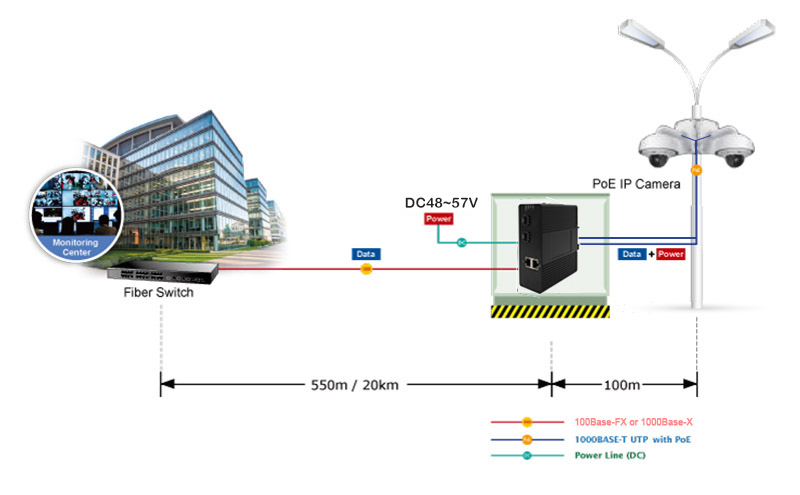

UF-IES202P is a 2 ports 10/100Base-TX + 2 port 100Base-FX Hardened PoE switch. The Switch provides 2 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.



Industrial PoE Switches, Industrial Fiber PoE Switches, Ruggedized PoE Switches, Industrial Unmanaged PoE switch, Managed Industrial PoE Switches, Industrial Gigabit PoE Switches

►    2 x 10/100Base-TX + 2 x 100Base-FX

►    10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

►    Supports Store-and-Forward Transmission

►    Supports IEEE 802.3at PoE+ (30W per port)

►    SFP, SC, FC, ST Fiber Port Optional

►    Supports 802.3x Flow control

►    Redundant Power Inputs

►    Supports Wall-mount and DIN-Rail installation

►    -40°C to 80°C (-40°F to 176°F) operating temperature


Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3x Flow Control

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

Packet Buffer Memory:

512K bits

Switch Fabric

1 Gbps

Cabling:

10Base-T: Cat5 or above

100Base-TX: Cat5 or above

Processing Type:

Store-and-Forward

Maximum Distance

Cat5 UTP up to 100m

Address Table Size:

1024 MAC Addresses

Interface

Connector:

2 x RJ45

Optical Port:

2 x 100Base-FX (SFP, SC, FC, ST Optional)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

48~57VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

65W Max. (PoE in use)

5W Max. (PoE not in use)

Standard:

IEEE802.3af/at

PoE:

Port:

RJ45 Port 1 ~ Port 2

Max. Power per Port:

30W Max per port (Alternative B Mode)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power1, Power2 Status

PoE:

Per Port Status

Ethernet (Per Port):

Link/Activity

Fiber:

FX1, FX2

Dimensions (WxDxH):

50 x 108 x 139 mm

Weight:

0.6Kg

Casing:

Metal Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

  • Download FileName:UF-IES202P 2FE+2Fiber Industrial PoE Switch Datasheet V1.0.pdf Size: 613KB

Model

Description

UF-IES202P

Industrial 2-Port 10/100TX 802.3at PoE + 2-Port 100FX Ethernet Switch, Multimode, Dual Fiber, SC, 2KM

UF-IES202P-20

Industrial 2-Port 10/100TX 802.3at PoE + 2-Port 100FX Ethernet Switch, Single Mode, Dual Fiber, SC, 20KM

UF-IES202PS-20

Industrial 2-Port 10/100TX 802.3at PoE + 2-Port 100FX Ethernet Switch, Single Mode, Single Fiber, SC, 20KM

UF-IES202PF-20

Industrial 2-Port 10/100TX 802.3at PoE + 2-Port 100FX Ethernet Switch, Single Mode, Single Fiber, FC, 20KM

UF-IES202P-SFP

Industrial 2-Port 10/100TX 802.3at PoE + 2-Port 100FX SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 75W/1.6A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
