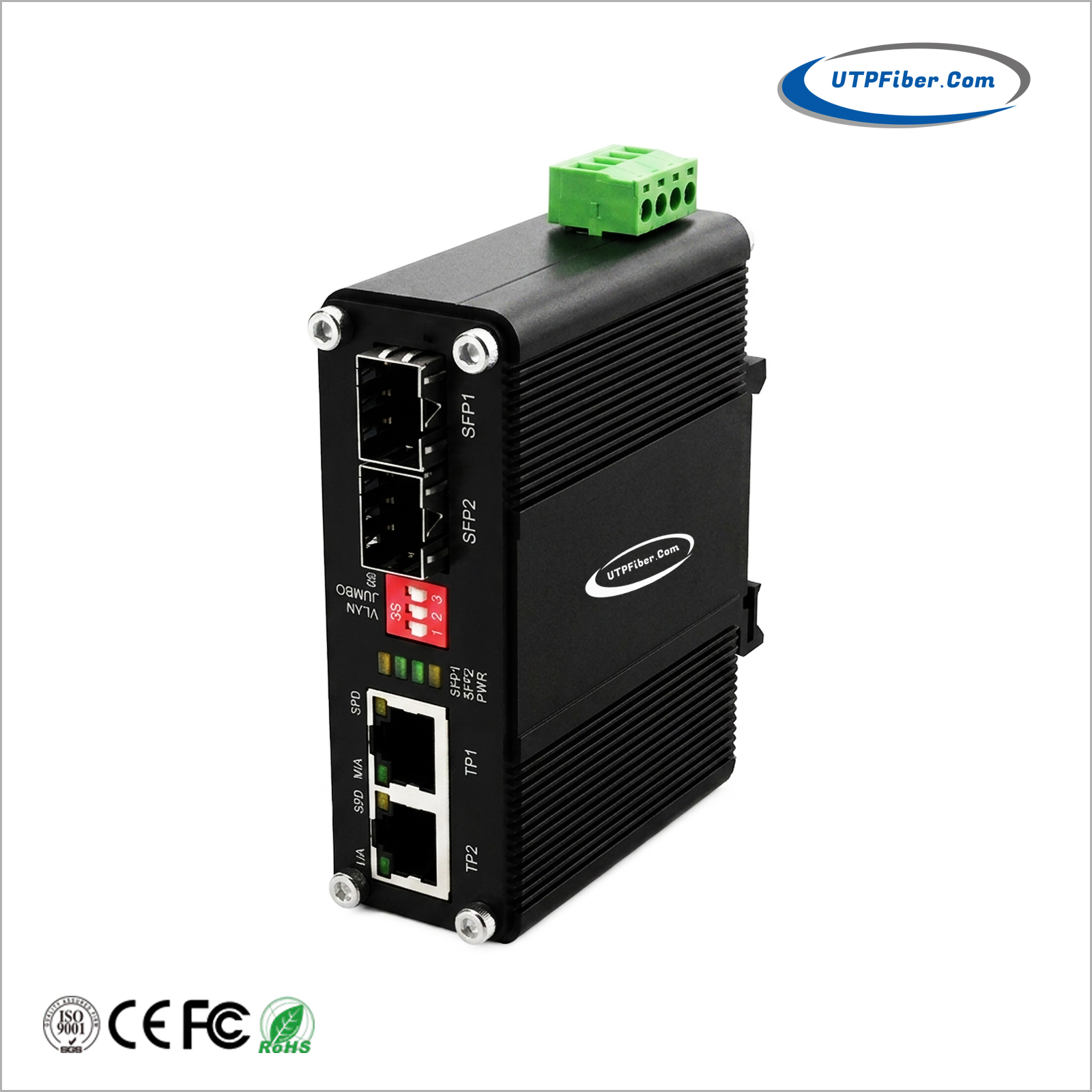

Mini Industrial PoE-Powered 2G+2SFP Media Converter with DC 12V/19V/24V Splitter Output
Model:UF-IS202GPD-SP-BT Series
► Powered via remote IEEE 802.3bt PoE input, no power adapter is required
► DIP switch function: 1. Fiber redundant; 2. VLAN; 3. 10K Jumbo frame
► Factory-Configured DC Output: provides a fixed 12V, 19V, or 19V DC output up to 60W (36W max for 12V model)
► Dual Gigabit Ethernet Ports: 2-Port 10/100/1000Mbps RJ45 ports (1x PoE PD Input + 1x Data Output)
► Dual Gigabit SFP Slot: 2-Port 1000Base-X SFP
The UF-IS202GPD-SP-BT series is an industrial-grade, compact Gigabit Fiber Media Converter engineered for harsh environments and flexible edge deployment. Featuring a unique 2-Port 1000Base-X SFP slot and 2-Port 10/100/1000Base-T RJ45 Ethernet interfaces, this device provides seamless, high-speed optical-to-copper media conversion with automatic speed negotiation.
UF-IS202GPD-SP-BT series can realize the optical line 1 + 1 redundancy protection in point-to-point mode via the DIP switch; it can provide Optical Port automatic protection switching. Via the DIP switch, the UF-IS202GPD-SP-AT can be configured as 2-port redundant media converter. When in the 2-port redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair.

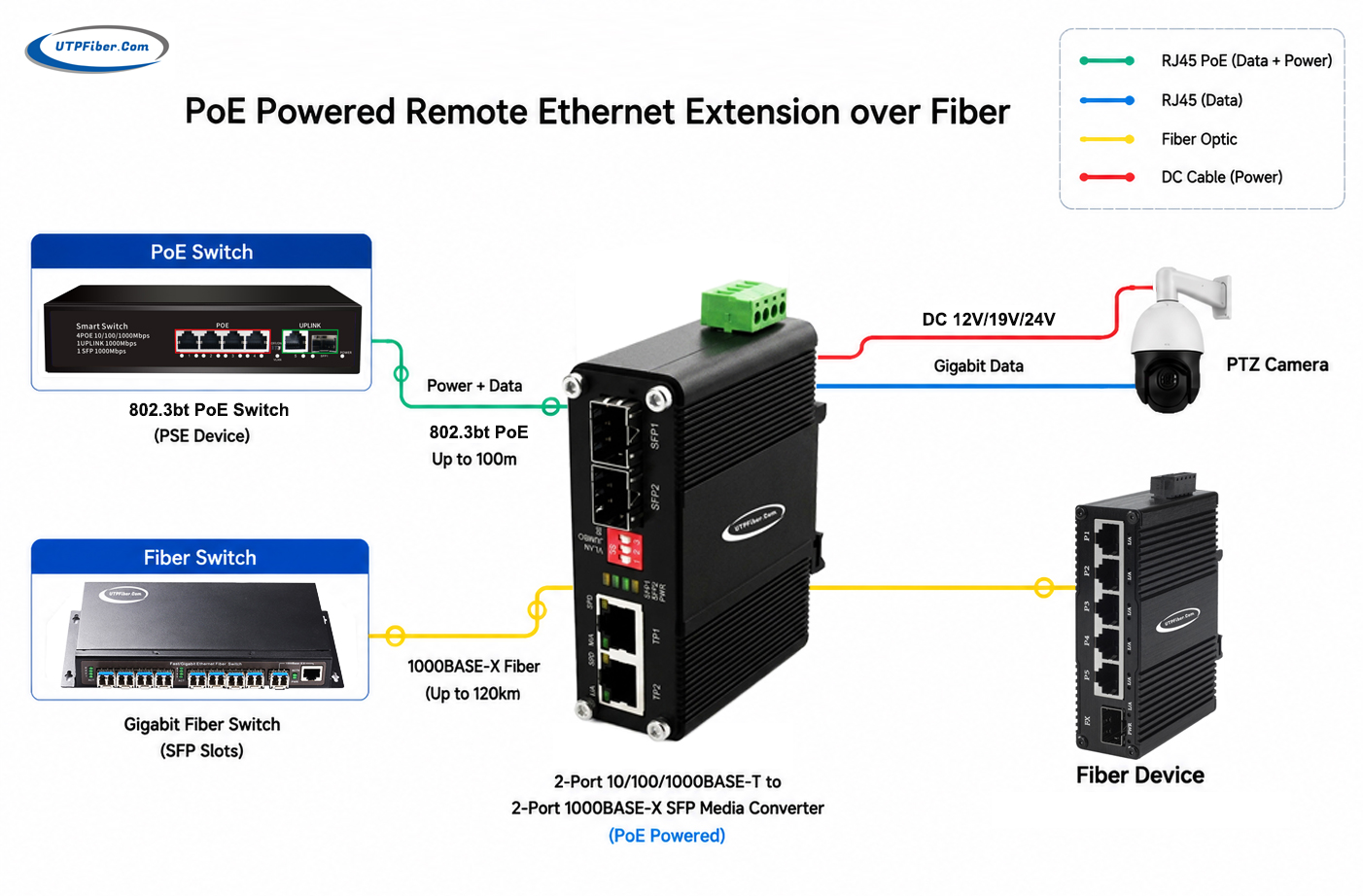

Designed with versatility in mind, the unit functions as a PoE Powered Device (PD) via its dedicated PoE IN port, drawing power directly from an upstream IEEE 802.3bt PoE switch or PoE Injector. This eliminates the need for a local AC/DC power source, drastically simplifying installation in remote or space-constrained areas.
Going beyond standard media converters, it features an integrated high-efficiency PoE Splitter, capable of delivering up to 60W (3A max) of optional DC power output through a rugged terminal block. With 12V, 19V, or 24V DC voltage options, it can simultaneously power non-PoE legacy devices—such as IP cameras, wireless access points, or industrial controllers—and transmit high-speed data over a single fiber backhaul.
Housed in a ruggedized, fanless industrial enclosure, this mini media converter delivers rock-solid reliability, making it the perfect solution for IP surveillance, smart city traffic control, and industrial automation networks.
► PoE-Powered Convenience: Fully powered via remote IEEE 802.3bt PoE input, no power adapter is required
► Powerful DIP switch function: 1. Fiber redundant; 2. VLAN; 3. 10K Jumbo frame
► Factory-Configured DC Output: Built-in high-efficiency DC step-down splitter provides a fixed 12V, 19V, or 19V DC output up to 60W (36W max for 12V model) to reliably power external non-PoE edge devices.
► Dual Gigabit Ethernet Ports: 2-Port 10/100/1000Mbps RJ45 ports (1x PoE PD Input + 1x Data Output) for local network bridging
► Gigabit SFP Slot: 2-Port 1000Base-X SFP, breaking copper network distance limitations via single-mode or multi-mode fibers.
► Industrial-Grade Design: Operates over extreme temperature ranges (-40°C to +75°C} with an IP40 aluminum casing, excellent ESD/Surge protection, and fanless passive cooling.
► Compact & Easy Deployment: Highly space-saving form factor (95 x 70 x 30mm}) with plug-and-play DIN-Rail or Wall-mount installation.
|
Physical Port |
|
|
Copper Ports |
2 x 10/100/1000BASE-T RJ45 (1x Data Port TP, 1x PoE IN) Auto-MDI/MDI-X, Auto-Negotiation |
|
Fiber Ports |
2 x 1000Base-X SFP Slot |
|
DC Output Port |
1 x 4-pin Terminal Block |
|
Network Cable Requirements |
10/100/1000BASE-T: 2-pair UTP Cat3/4/5/5e/6 (Max 100m) or 100-ohm STP (Max 100m) |
|
Power Supply & PoE Delivery |
|
|
Power Input Interface |
PoE Input via "PoE IN" RJ45 Port |
|
PoE Standards |
IEEE 802.3at / IEEE 802.3bt compliant |
|
Input Voltage Range |
DC 48V - 57V |
|
DC Output Voltage |
12V, 19V, 24V (Factory-Configured with different model) |
|
DC Output Current |
3.0A Maximum |
|
DC Output Channel |
1 or 2 |
|
Total Power Budget |
60W Max (Dependent on PoE power input source) |
|
Power Consumption |
≤5 Watts Max (Self-consumption, without splitter load) |
|
Ethernet |
|
|
Ethernet standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
Packet buffer |
1Mbits |
|
Maximum packet length |
Up to 10K Bytes |
|
MAC address table |
2K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Exchange property |
Delay time: < 7μs Switch Fabric: 12Gbps Throughput (packet per second): 8.93Mpps@64bytes |
|
LED Indicator |
|
|
PWR (Power Status) |
ON: Power is supplied normally / OFF: No power input |
|
RJ45 L/A (Green) |
ON: Copper link active / Blinking: Data transmitting / OFF: Disconnected |
|
RJ45 SPD (Amber) |
ON: Operating at 1000 Mbps / OFF: Operating at 10/100 Mbps |
|
SFP1 (Fiber Link) |
ON: Optical fiber is connected / Blinking: Data transmitting |
|
SFP2 (Fiber Link) |
ON: Optical fiber is connected / Blinking: Data transmitting |
|
Physical Property |
|
|
Casing Protection |
Aluminum Enclosure, IP40 Rated |
|
Cooling Mechanism |
Natural Passive Cooling (Fanless) |
|
Dimensions (L x W x H) |
95 x 70 x 30 mm |
|
Installation Mounting |
35mm DIN-Rail or Wall-mount Bracket installation |
|
Weight |
0.25 Kg (bare device weight) |
|
Working Environment |
|
|
Operating Temperature |
-40℃ ~ +75℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃ ~ +85℃ |
|
Warranty |
|
|
MTBF |
>500,000 hours |
|
Standard Warranty |
5 years and lifetime technical support |
|
Certification Standard |
|
|
ISO |
Manufactured in ISO-9001 facility |
|
EMI |
FCC Part15 Subpart B Class A, IEC 61000-3-2 |
|
EMS |
IEC61000-4-2 ESD: Contact:±8kV, Air:±15kV IEC61000-4-5 Surge: Power: ±6kV; RJ45:±4kV/±6kV(PoE) |
|
Shock |
IEC60068-2-27 |
|
Free Fall |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Environmental |
RoHS 2011/65/EU Annex II(EU) |
|
Enclosure Protection |
IEC 60529 IP40 |
- Download FileName：UF-IS202GPD-SP-BT Series PoE Powered Industrial 2G+2SFP Media Converter with PoE Splitter Function D Size： 786KB
|
Model |
Description |
|
UF-IS202GPD-SP-BT-12V |
802.3bt PoE Powered Industrial 2G+2SFP Media Converter w/ PoE Splitter Function - 12V / 3A / 36W max output |
|
UF-IS202GPD-SP-BT-19V |
802.3bt PoE Powered Industrial 2G+2SFP Media Converter w/ PoE Splitter Function - 19V / 3A / 57W max output |
|
UF-IS202GPD-SP-BT-24V |
802.3bt PoE Powered Industrial 2G+2SFP Media Converter w/ PoE Splitter Function - 24V / 2.5A / 60W max output |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed (Wall-mount bracket optional) |
|
Power Options |
► IEEE 802.3at/bt 48V~57V DC in-line power |
