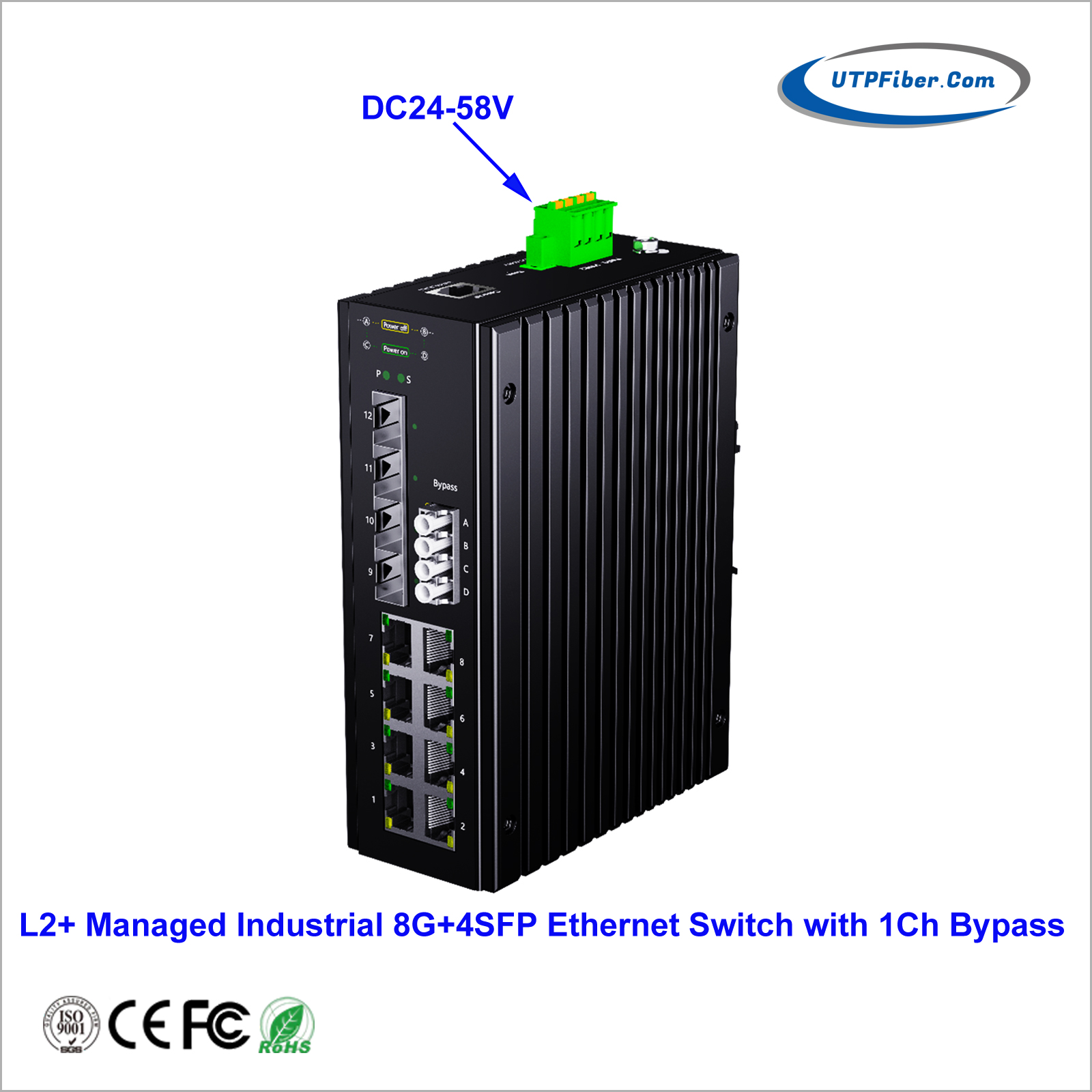

Model No.
|
UF-MIS6408G-FBP
|
Interface
|
Fiber ports
|
Copper RJ45 ports
|
4
|
8
|
Ethernet
|
8*10/100/1000Base-T RJ45
4*1000/2500Base-X SFP
|
Management port
|
1*RJ45 Console port (115200,8,N,1)
|

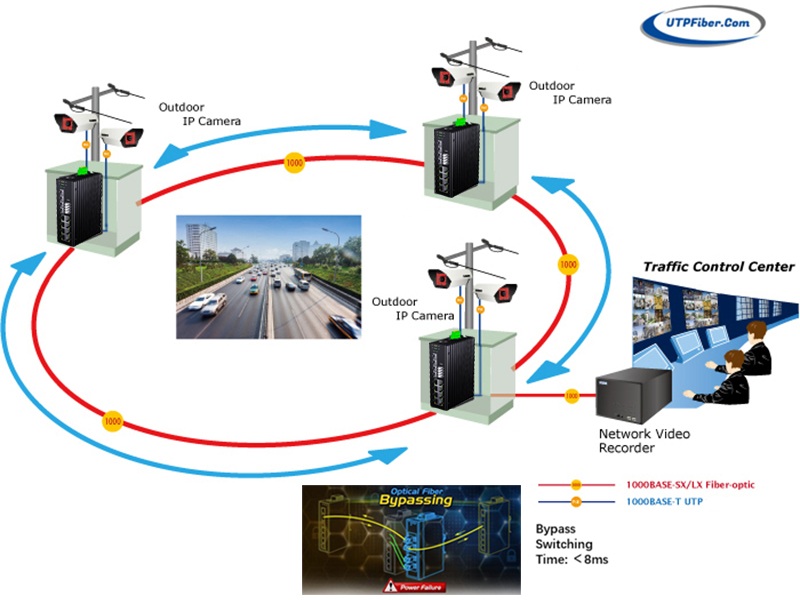

Bypass Features
|
Connector type
|
LC Female
Connector
|
Bypass Channels
|
1 channel single
LC
|
Optical
Switching Time
|
≤10 ms, power
failure<--->power normal
|
Insertion Loss
|
1.2 dB (max)
|
Standard
|
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3ab 1000Base-T Ethernet
IEEE 802.3z 1000Base-X Ethernet
IEEE802.3x Flow Control and Back
Pressure
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree
Protocol
IEEE 802.1Q VLAN
ITU-T G.8032 ERPS
IEEE 802.1X Port Authentication
Network Control
IEEE 802.1ab LLDP
IEEE 802.3ad LACP
|
LED Indicators
|
P (Power indicator)
|
Off: the device is power off or failed
|
On: the device
power on is normal
|
S (System status indicator)
|
Blinking:
device initialization
|
On: device on
normal operation
|
1-8 (Copper ports indicators) Green
|
Off: ports
link down
|
On: ports link
up
|
Blinking: data
on TX/RX
|
1-8 (Copper speed indicators) Yellow
|
Off: ports on
10/100M
|
On: ports on
1000M
|
9-12 (Fiber ports indicators) Green
|
Off: ports link down
|
On: ports link
up
|
Blinking: data
on TX/RX
|
Power parameter
|
Input voltage
|
24-58V DC, redundant power input
|
Input current
|
1.2A Max
|
Total power consumption
|
Full loading ≤15W
|
Connector
|
Removable 4-pin terminal block
|
Reverse polarity protection
|
Support
|
Over-voltage protection
|
Support
|
Over-current protection
|
Support
|
Layer 2 functions
|
Port aggregation
|
Support GE port aggregation
Support 2.5GE aggregation
Support static aggregation
Support LACP dynamic aggregation
Up to 64 aggregation groups and up to 8 ports per group
|
Port features
|
Support IEEE802.3x flow control,
Support interface counters,
Support port isolation,
Port mirroring ( One-to-One,
Many-to-One)
Support loop detection (Port-based;
VLAN-based)
Support broadcast storm
suppression(broadcast; unknown multicast; unknown unicast)
|
Mac-address table management
|
Support static Mac-address management
Support dynamic Mac-address Management
Support filtering Mac-address
Support MAC limit based on port and
VLAN
Support MAC flapping based on port and
VLAN
|
VLAN
|
Support access mode
Support trunk mode
Support hybrid mode
|
VLAN classification
|
Mac Based VLAN
IP Based VLAN
Protocol Based VLAN
|
GVRP
|
Normal mode
Fixed mode
Forbidden mode
|
QinQ
|
Port-based QinQ
VLAN-based QinQ(VLAN-stacking;
VLAN-mapping)
Flow-based QinQ
|
LLDP
|
LLDP (Link Layer Discovery Protocol)
|
Ring network protocol
|
Support IEEE802.1D-STP
Support IEEE802.1W-RSTP
Support IEEE802.1S-MSTP
|
Support G.8032 ERPS protocol,single ring, sub Ring and major ring
Recovery time ≤20ms
|
L2 Multicast
|
IGMP snooping
|
Support IGMP snooping
|
Group address
|
Support group address
|
Security functions
|
ACL
|
IP Standard ACL
MAC extend ACL
IP extend ACL
IPv6 ACL
|
QoS
|
Support QoS Class, remarking
Support SP, WRR queue scheduling
Ingress port-based rate-limit
Egress port-based rate-limit
Support policy-based QoS
|
802.1x
|
Port access control
Mac-address access control
RADIUS server
|
Port-security
|
Port-security
|
IP source guard
|
IP Port/MAC binding
|
ARP-check
|
Support ARP-check and ARP packet
filtering for illegal users
|
Access control
|
Support Telnet/SSH/HTTP/HTTPS user
access control
|
Management & Maintenance functions
|
User Management
|
Support password protection
Support user authorization management
|
SNMP
|
Supporting SNMP V1/V2C/V3 version
|
Web Management
|
Web Management
Support HTTP V1.1
Support HTTPS
|
CLI management
|
Console/Telnet command line management
|
RMON
|
Support RMON(Remote Monitoring) alarm
|
Firmware upgrade
|
Firmware upgrade
|
Fault Detection
|
Ping/Traceroute
Dying gasp
Support optical transceiver DDM function
|
Cable detection
|
Support copper port cable detection
|
NTP
|
Network Time Protocol
|
Syslog/Debug
|
Syslog/Debug
Syslog send to three servers
|
Configuration import/export
|
Support FTP/TFTP remote import/export
|
Dual partition management
|
Support dual partition switching
|
Application Protocol Functions
|
DHCP Snooping
|
DHCP snooping trust port
Support remote-id/circuit-id configuration
DHCP option-82
|
DHCP client
|
Support DHCP client
|
Telnet server
|
Support telnet server
|
Telnet client
|
Support telnet client
|
SSH server
|
Support SSH server
|
TACACS
|
Support TACACS(the terminal access controller accesses
the control system)
|
sflow
|
Support network traffic analysis
|
TFTP
|
Support TFTP Client
|
Layer 3 functions
|
ARP
|
ARP table aging
|
DHCP server
|
|
IPv4 / IPv6
|
static routing
|
Switching features
|
Switching capacity
|
36Gbps
|
Packet forwarding rate
|
53.5Mpps
|
MAC address table
|
16K
|
VLAN
|
4K
|
Buffer
|
12Mbit
|
Forwarding delay
|
<5us
|
Jumbo Frame
|
Support 10Kbytes
|
MDX/MIDX
|
Support
|
Watchdog
|
Support
|
Mechanical structure
|
Case protection
|
IP40
|
Installation method
|
Din-rail
|
Dimension(W*D*H)mm
|
54*115*158mm
|
Weight
|
1.20 kg
|
Operating environment
|
Operating temperature
|
-40℃~+80℃
|
Storage/transportation temperature
|
-40℃~+85℃
|
Relative humidity
|
Operation humidity: 10%-90%RH
Storage humidity: 5%-95%RH
|
Industrial Standard
|
EMS
|
Surge protection of power: IEC
61000-4-5 6KV/4KV(8/20us)
Surge protection of Ethernet ports:
IEC 61000-4-5 6KV/2KV(10/700us)
RS:IEC 61000-4-3 80 MHz-1 GHz:10 V/m
EFT:IEC 61000-4-4 4K/2K
CS:IEC 61000-4-6 10V
ESD:IEC 61000-4-2 Contact: 8K;Air: 15K
|
EMI
|
FCC Part 15B Class A
|
Shock
|
IEC 60068-2-27
|
Free fall
|
IEC 60068-2-32
|
Vibration
|
IEC 60068-2-6
|
Certification
|
CCC/CE/UKCA/RoHS/REACH/FCC
|
MTBF
|
>200,000 hours
|
Warranty
|
5 years
|
