4x10/100/1000Base-T PoE+ ports, 2x100/1000Base-X SFP ports
100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection

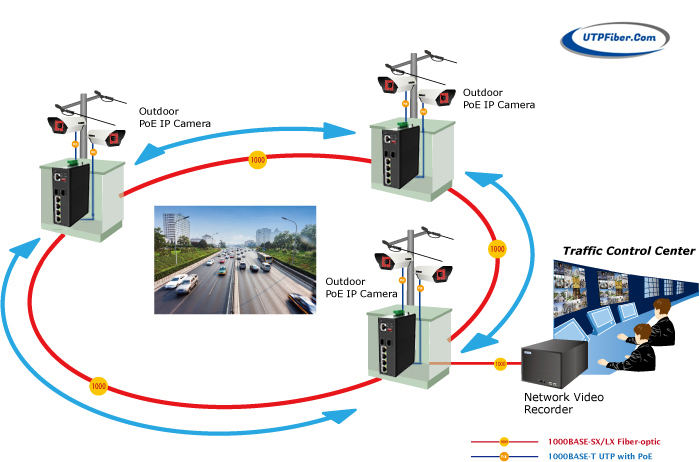

UF-MIES204GP-SFP Series is an industrial Managed switch with 4-Port 10/100/1000BASE-T 802.3at PoE+ and 2-Port 100/1000Base-X SFP. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high stability, and easy to maintain. With dual power input design, UF-MIES204GP-SFP can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
► 4x10/100/1000Base-T PoE+ ports, 2x100/1000Base-X SFP ports
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Provide SC/FC/ST/LC fiber port (optional), support single/dual fiber transmission
► Support 10K bytes giant frame, compatible with various extension protocol
► Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table
► IPv6 Protocol, Electric 4KV surge protection
► Power input polarity protection design, no worry about wrong operation
► Aluminum case, no fan design
► Installation method: DIN trail /Wall mounting
► DHCP RFC 1541, 1542
Physical Port |
|
RJ45 port and speed |
4x10/100/1000BASE-T 802.3at PoE |
Fiber port and speed |
2x100/1000BASE-X SFP (Dual Mode, Auto Detection) |
Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
Parameters |
|
Ethernet standards |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP ITU G.8032 ERPS Ring RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 |
Packet buffer |
4Mbits |
Packet length |
Up to 10K Bytes |
MAC address table |
8K |
Transmission mode |
Store and Forward (full/half duplex mode) |
Switch Fabric |
24Gbps/non-blocking |
Exchange property |
Delay time: < 7ps
Backplane
bandwidth: 12Gbps |
PoE |
|
PoE Standard |
4x IEEE 802.3af /IEEE 802.3at PoE |
Power budget |
Max. PoE output power budget 30W |
Power Pin Assignment |
1/2, 4/5(+); 3/6, 7/8(-) in default |
LED Indicator |
|
Power |
Connect-always |
RJ45 |
Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
Fiber |
Link/Act: connect-always; data exchange-twinkle |
Power Information |
|
Power access mode |
Phoenix terminal |
Redundant power input |
DC 48-57V |
Overload protection |
Yes |
Power reverse |
Support |
Power consumption |
Full-load<15W (Not use PoE) |
Physical Property |
|
Protection grade |
IP40 aluminum case |
Cooling mode |
Natural cooling, no fan design |
Dimensions |
138mm x 106mm x 41mm (L x W x H) |
Installation mode |
DIN trail/wall-mountable |
Weight |
700g |
Working Environment |
|
Operating Temperature |
-40℃~80℃ |
Operating Humidity |
5%~90% non-condensing |
Storage Temperature |
-40℃~80℃ |
Warranty |
|
MTBF |
500,000 hours |
Defects Liability Period |
5-year warranty, lifetime technical support |
Certification Standard |
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
Collision |
IEC60068-2-27 |
Drop |
IEC60068-2-32 |
Vibration |
IEC60068-2-6 |
Safety grade |
EN60950-1 |
Software |
|
Software Features |
Redundant network: STP/RSTP |
Multicast: IGMP Snooping V1/V2 |
|
VLAN: IEEE 802.1Q 4K VLAN, QINQ |
|
Link Aggregation: manual |
|
Management Function: CLI/WEB/SNMP |
|
Diagnostic Maintenance: Port mirroring, Ping |
|
Alarm management: 1 way relay alarm output, RMON, SNMP Trap |
|
Security: DHCP Snooping, User hierarchical management |
|
Data
control Port-based ingress/egress speed limit, Full duplex IEEE 802.3x, half
duplex back-pressure flow control. |
Model |
Description |
UF-MIES204GP-SFP |
L2+ Industrial 4-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Ethernet Switch |
UF-MIES204GP |
L2+ Industrial 4-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SC Managed Ethernet Switch, Multimode, Dual Fiber, 550 meters |
UF-MIES204GP-20 |
L2+ Industrial 4-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SC Managed Ethernet Switch, Single Mode, Dual Fiber, 20KM |
UF-MIES204GPS-20 |
L2+ Industrial 4-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SC Managed Ethernet Switch, Single Mode, Single Fiber, 20KM |
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
► SFP module is to be purchased separately. |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options |
►120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
► Power Supply is to be purchased separately. |
